Facing brickslinea7 1017

Technical data sheets

Color description: The colour is saffron yellow to yellow-beige with nuances through and through.
Manufacturing dimensions (L x W x H): ca. 247x75x38 mm (LxWxH)
Quantity / m² with a traditional joint: 78 (12 mm)
Number / m² with a thin joint: 90 (6 mm)

linea7 1017

Yellow-beige slim brick

This thin facing brick with subtle shading is produced using the Wasserstrich method. In addition to our ECO-7-size label it also carries our Hand-Made label which guarantees a strong, natural nuance. Thanks to its durable properties, this yellow unsanded ecological variant from our linea7 series offers more space for insulation or habitable area. Like all bricks in our linea7 range, it is ideal for accentuating clean lines in decorative brickwork.

Texture Generator

References

Slips by BrickZ

Technical data sheets

case studie linea7 1017

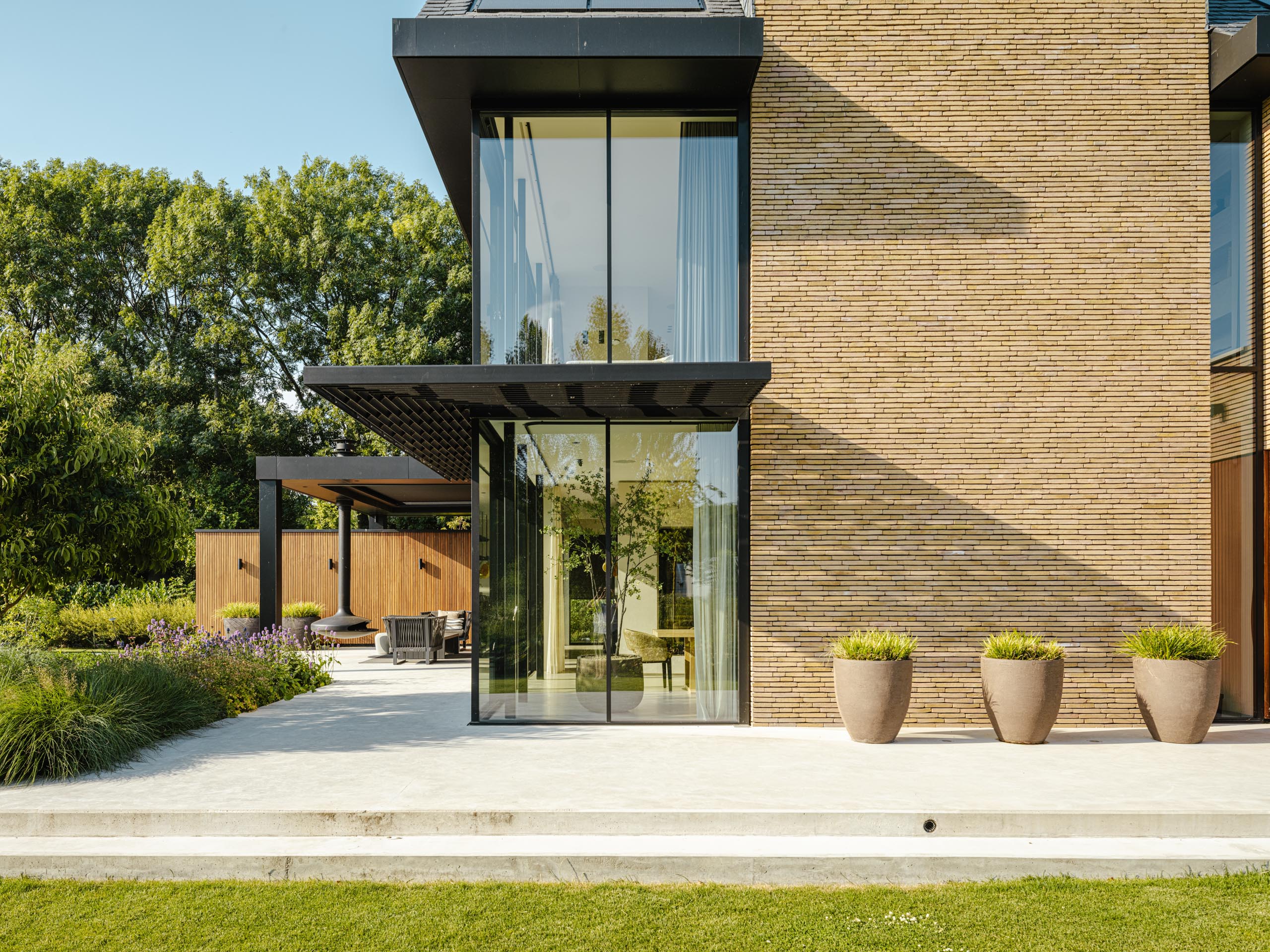

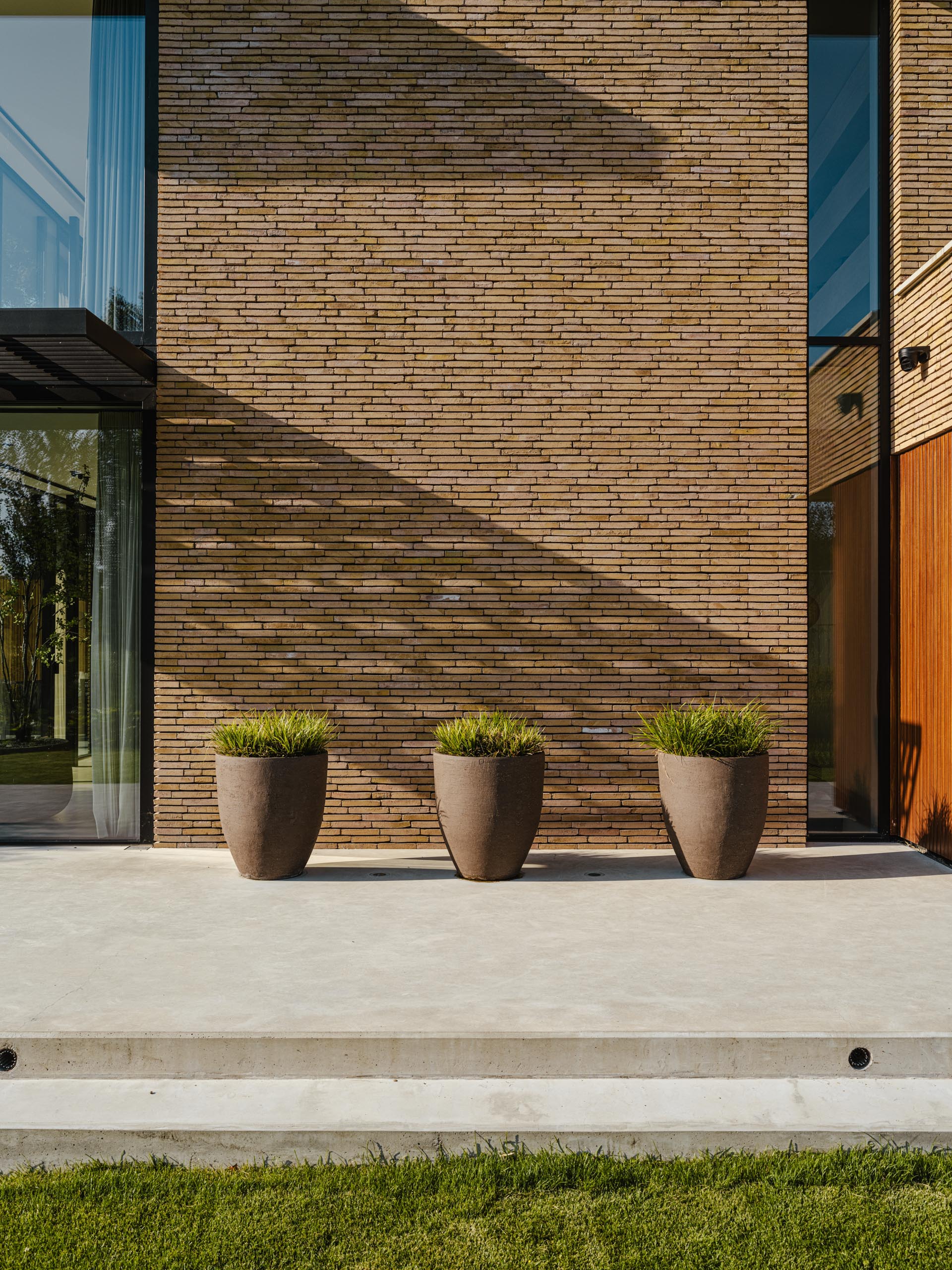

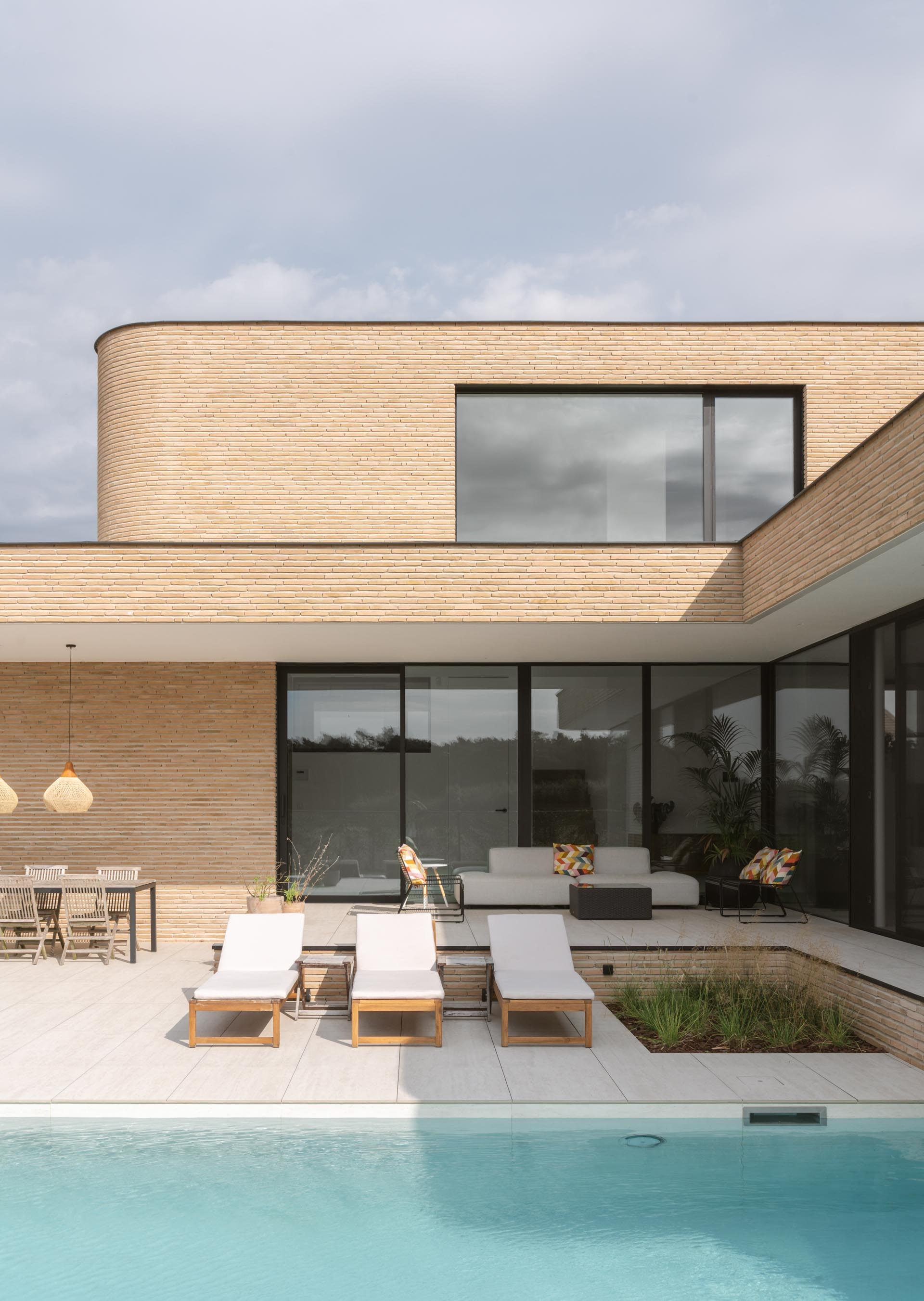

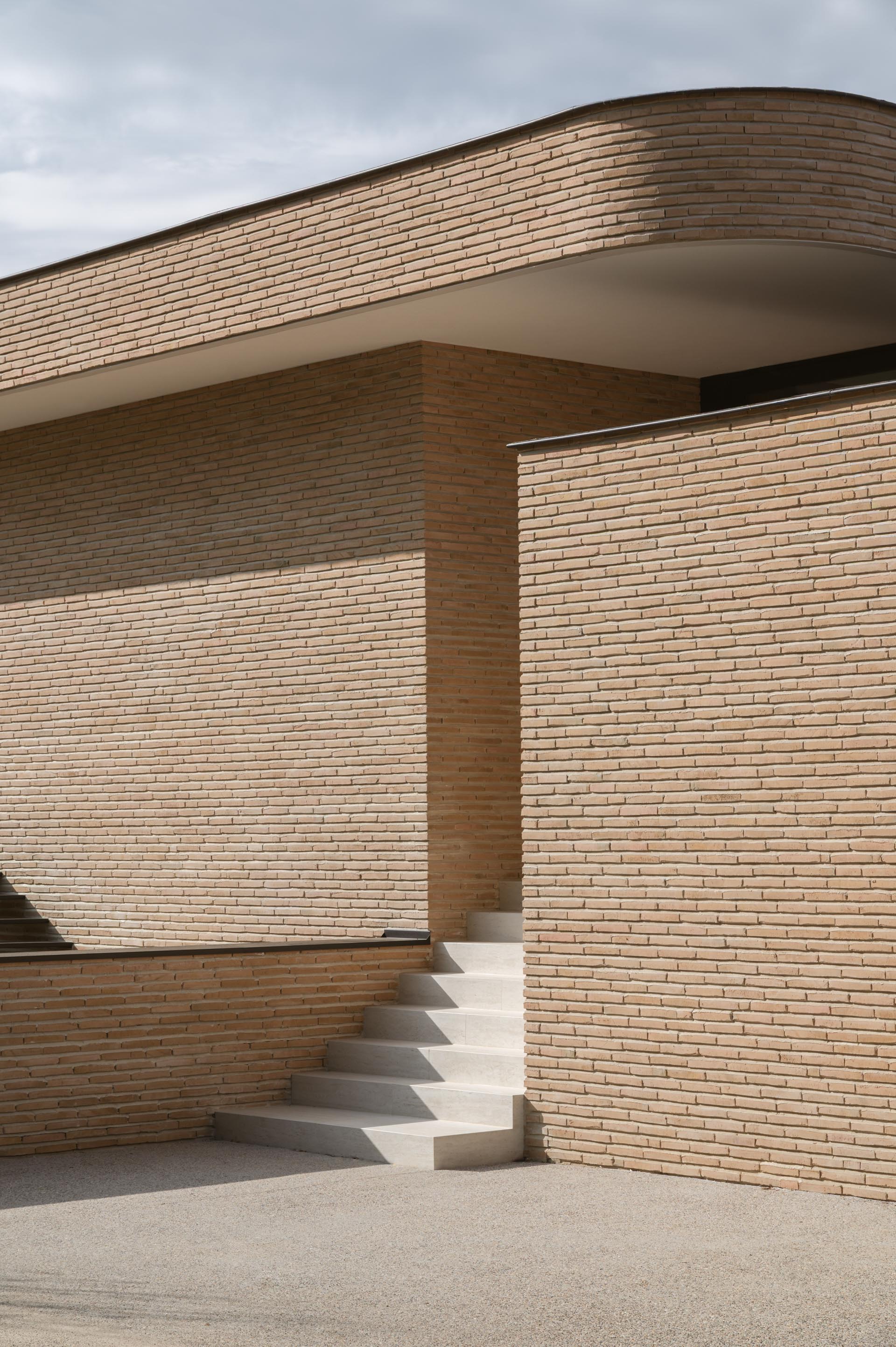

Architect’s villa where open space meets privacy

Facing brick lends warmth to a modernist façade

On the edge of the Hallerbos forest, DB Architecten designed a contemporary villa that brings living and working under one roof. Linea 1017 bricks translate changes in level, privacy and openness into a timeless architectural composition.

The challenge of building in a historic city centre

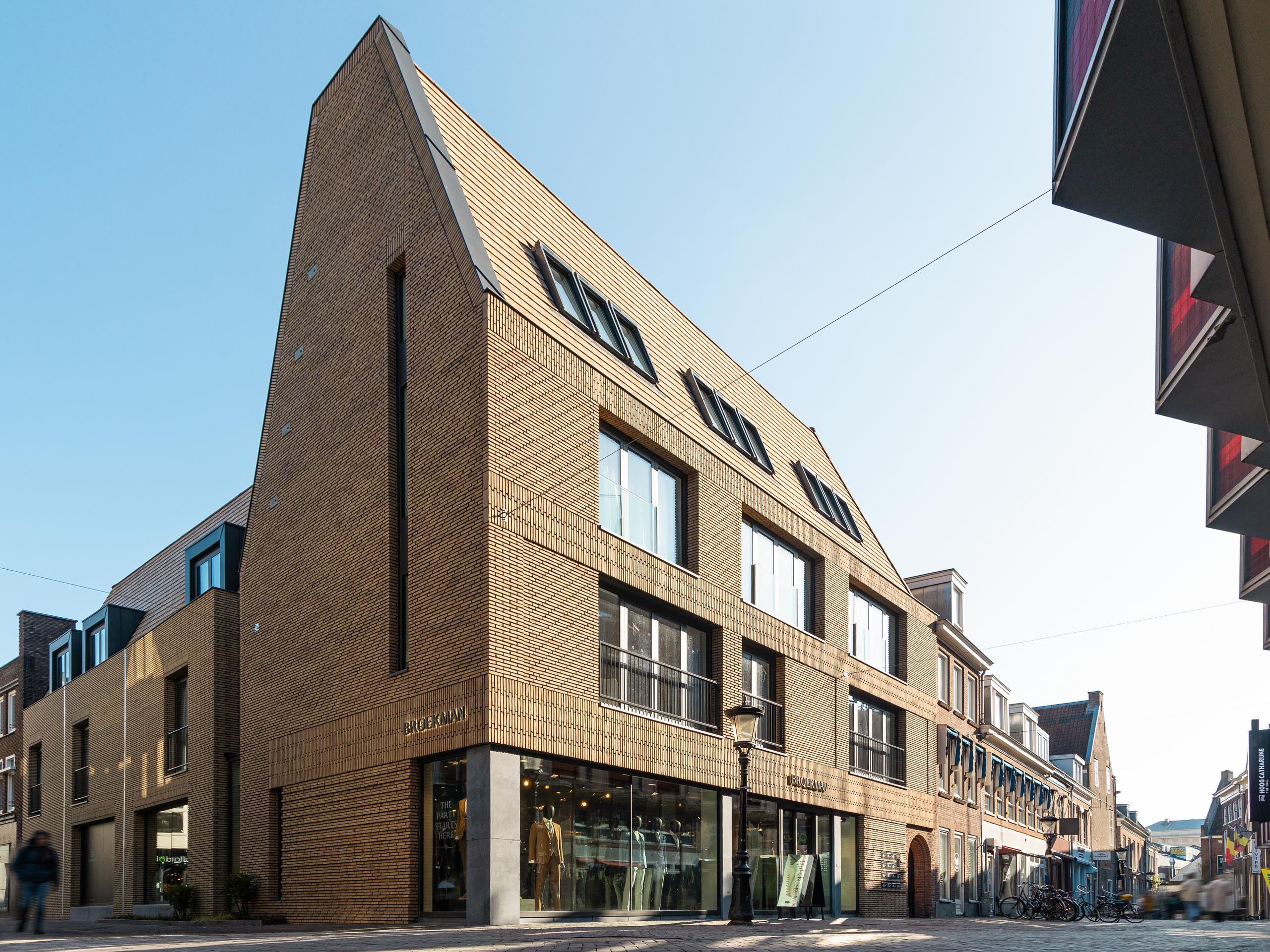

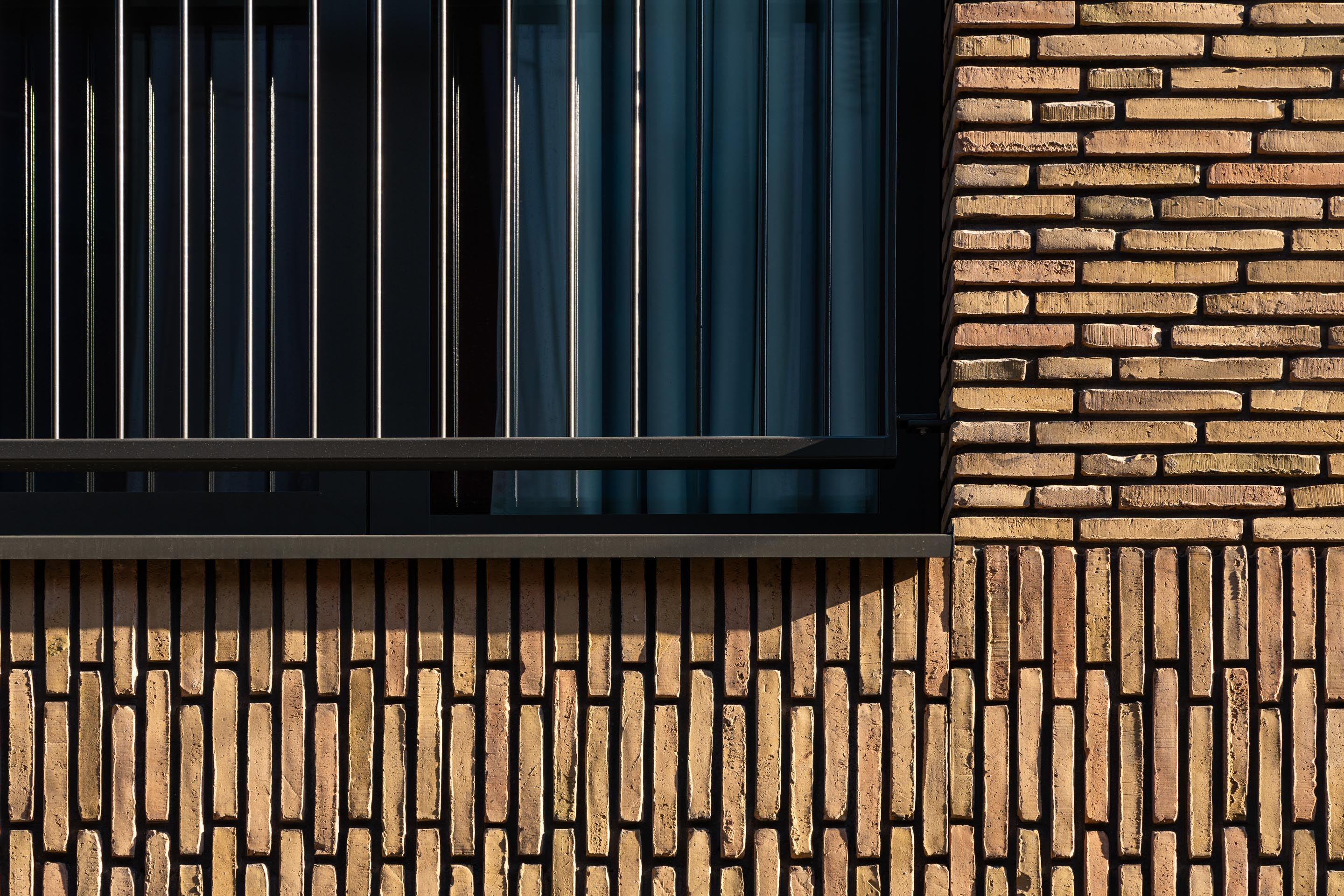

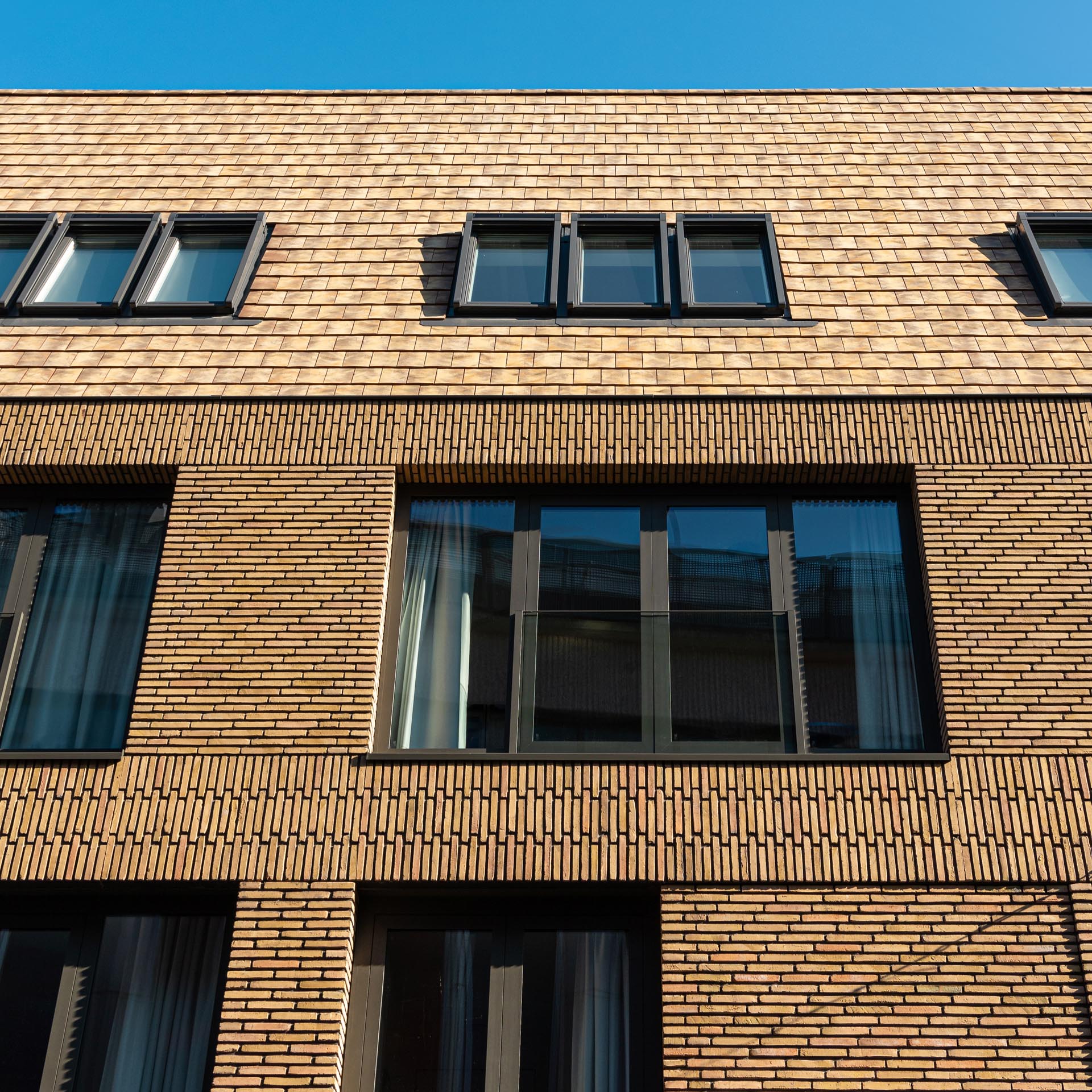

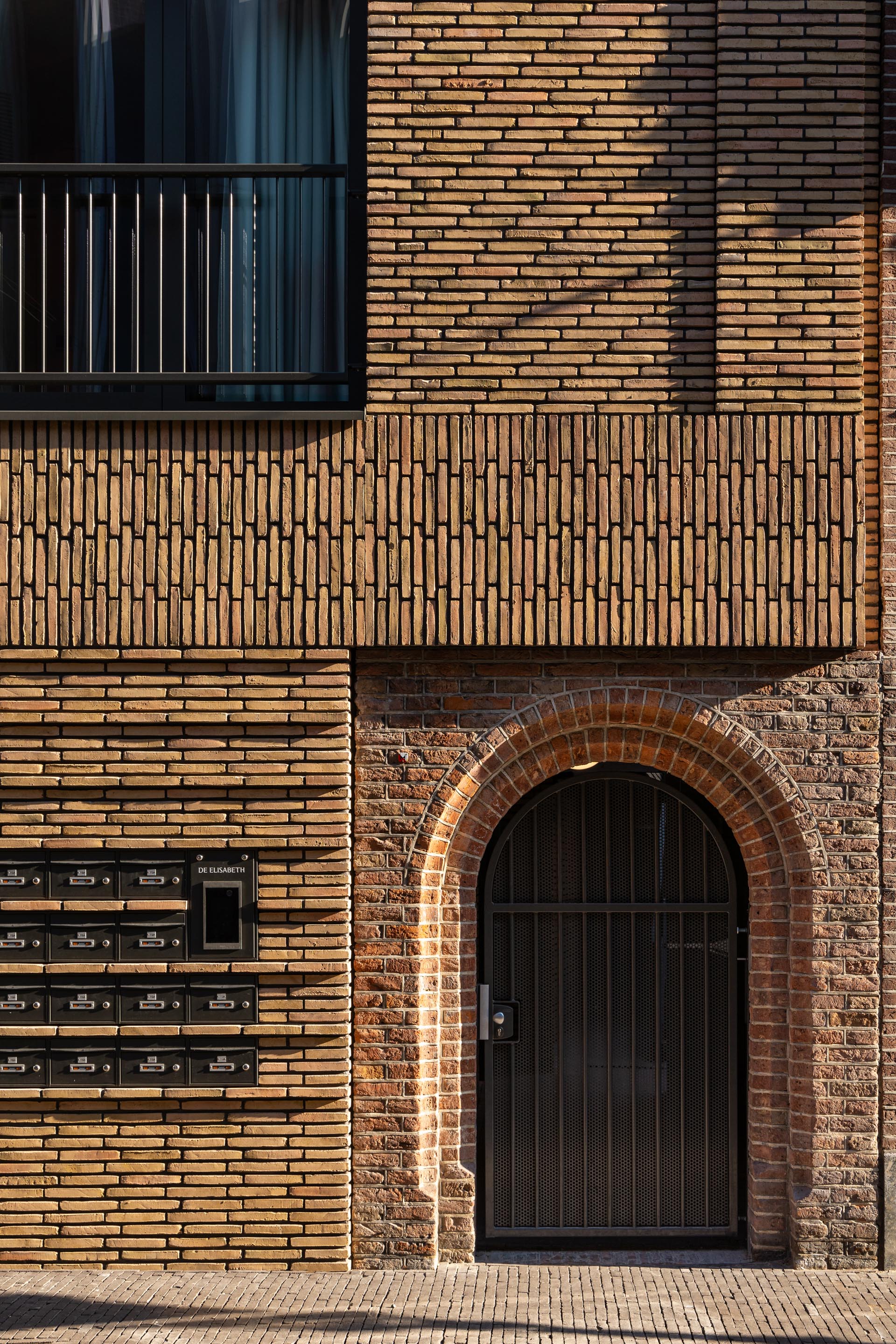

De Elisabeth at Hoog Catharijne: handcrafted facing bricks as an architectural compass

Thomas Kemme Architecten shows how new-build architecture and transformation can come together naturally in Utrecht’s historic city centre through a carefully considered choice of materials. Discover how De Elisabeth at Hoog Catharijne brings historic context and contemporary architecture together in this new case study featuring Linea facing bricks.

Architect’s villa where open space meets privacy
The challenge of building in a historic city centre

Show all case studies

References

Search by city

Print list

Reference list linea7 1017

You can scroll in this list

Postal code	City	Street	Bond	Joint
2018	Antwerpen	Arthur Goemaerelei 52	Random bond	12 mm
5944 PD	Arcen	Duveldlaan 10	Random bond with strike-through joint	10 mm
5944 PA	Arcen	Scheidsgraafsingel 35	Random bond	12 mm
1653	Beersel	Zonnebloemlaan 8	Random bond with strike-through joint	18 mm
5056 RC	Berkel en Rodenrijs	Anjerdreef 76 - 92	Random bond	12 mm
8701 AS	Bolsward	Professor Doctor Titus Brandsmalaan 10	Random bond with strike-through joint	10 mm
2585 JV	Den Haag	Duinweg 37K	Random bond	10 mm
8251 AV	Dronten	De Meridiaan 6	Random bond	12 mm
9450	Haaltert	Windmolenstraat 26	Random bond	6 mm

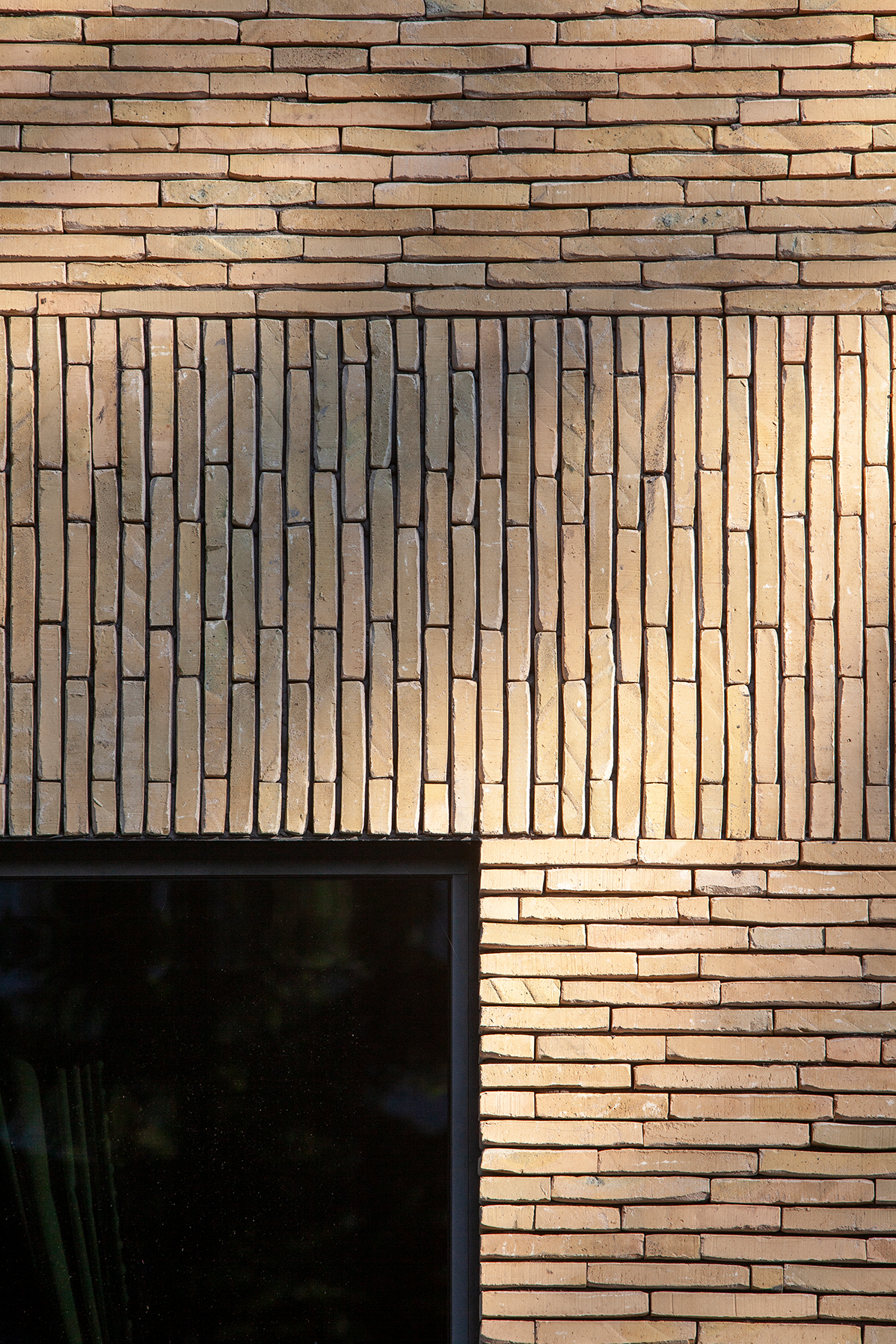

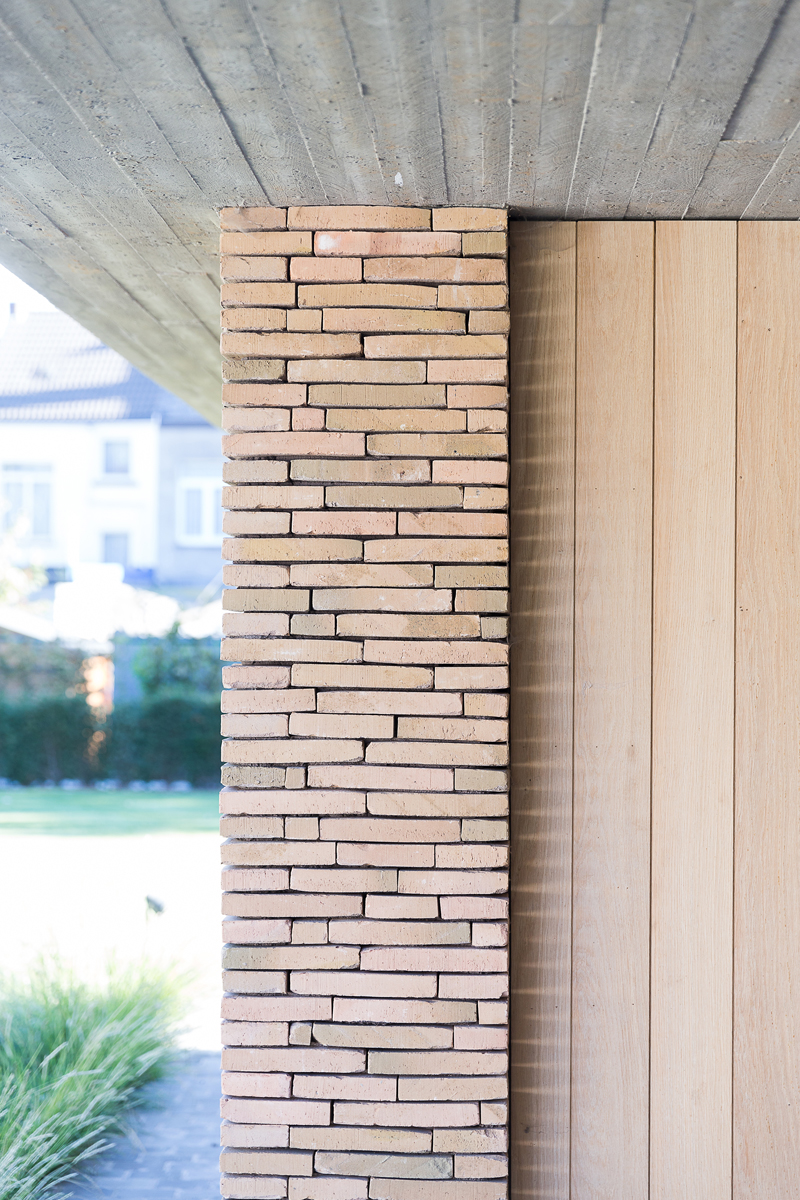

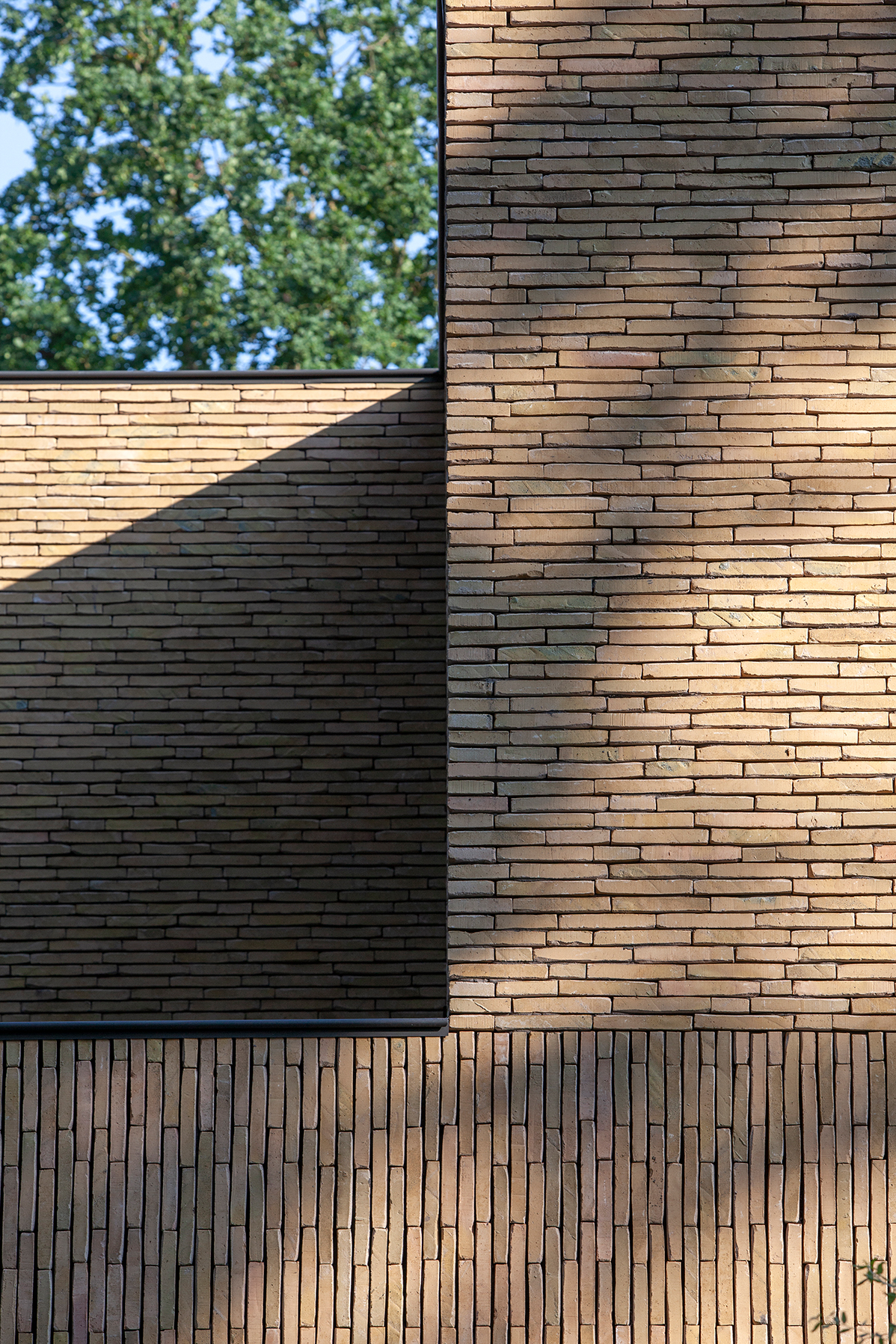

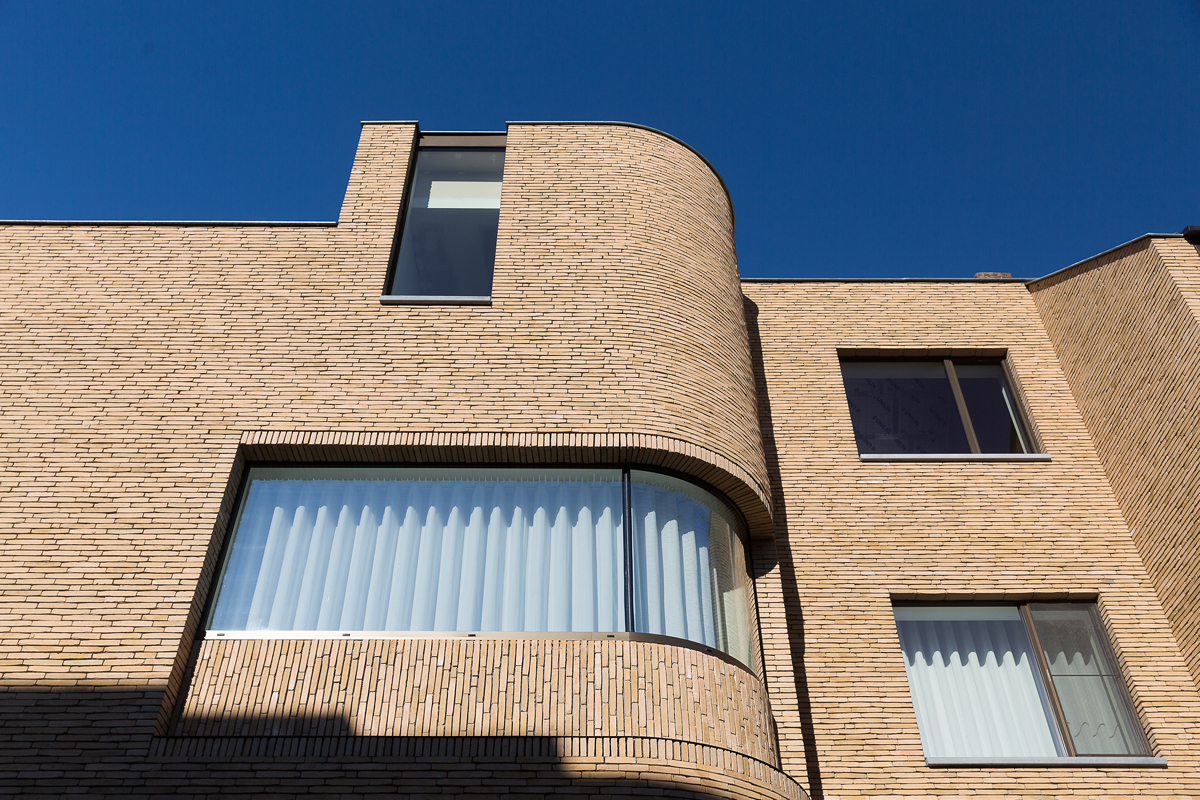

3500	Hasselt	Mgr. Kerkhofstraat 15	Random bond	6 mm

Postal code	City	Street	Bond	Joint
2018	Antwerpen	Arthur Goemaerelei 52	Random bond	12 mm
5944 PD	Arcen	Duveldlaan 10	Random bond with strike-through joint	10 mm
5944 PA	Arcen	Scheidsgraafsingel 35	Random bond	12 mm
1653	Beersel	Zonnebloemlaan 8	Random bond with strike-through joint	18 mm
5056 RC	Berkel en Rodenrijs	Anjerdreef 76 - 92	Random bond	12 mm
8701 AS	Bolsward	Professor Doctor Titus Brandsmalaan 10	Random bond with strike-through joint	10 mm
2585 JV	Den Haag	Duinweg 37K	Random bond	10 mm
8251 AV	Dronten	De Meridiaan 6	Random bond	12 mm
9450	Haaltert	Windmolenstraat 26	Random bond	6 mm
3500	Hasselt	Mgr. Kerkhofstraat 15	Random bond	6 mm
3500	Hasselt	Zandstraat 109	Random bond	6 mm
9270	Kalken	Husseveldestraat 9		12 mm

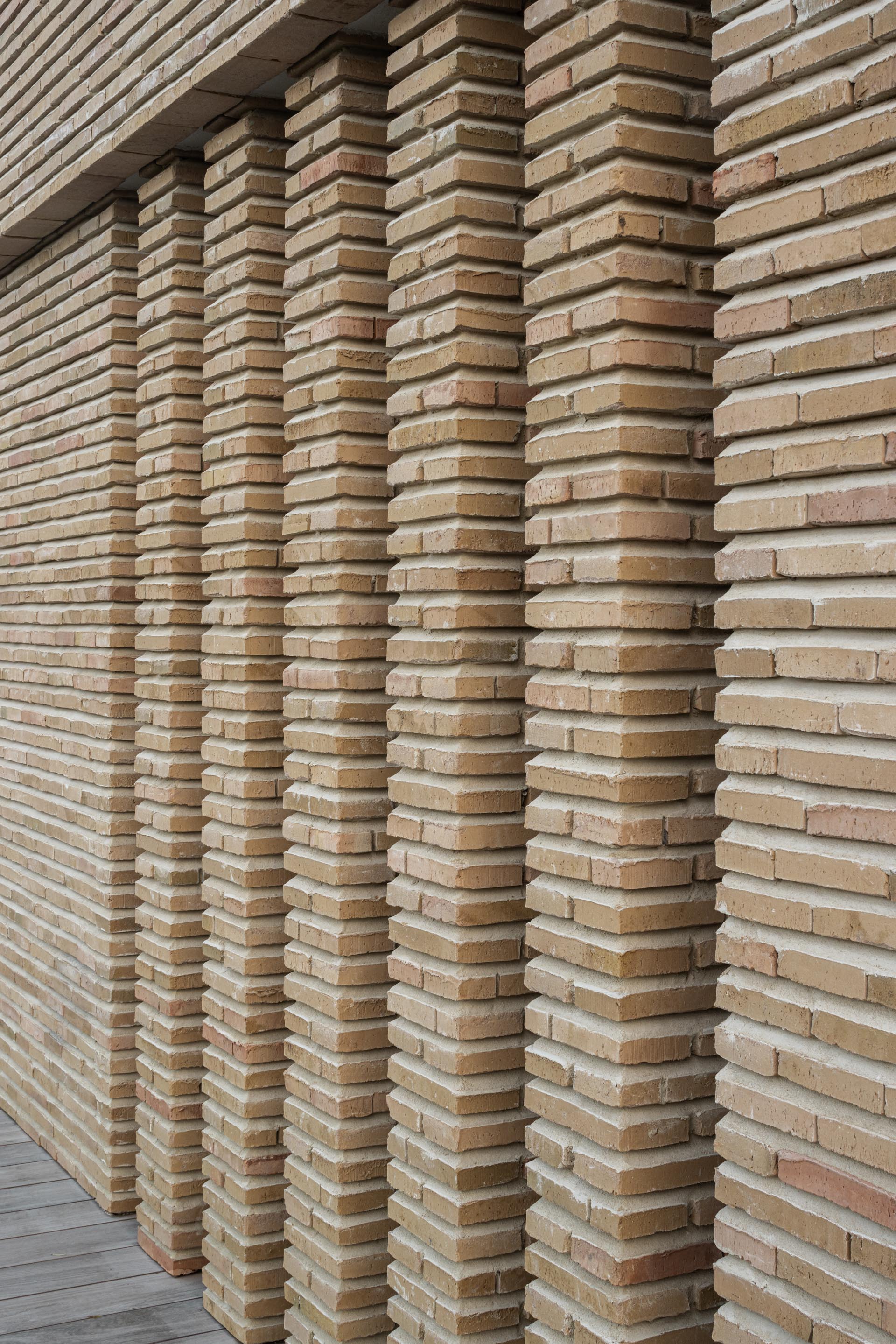

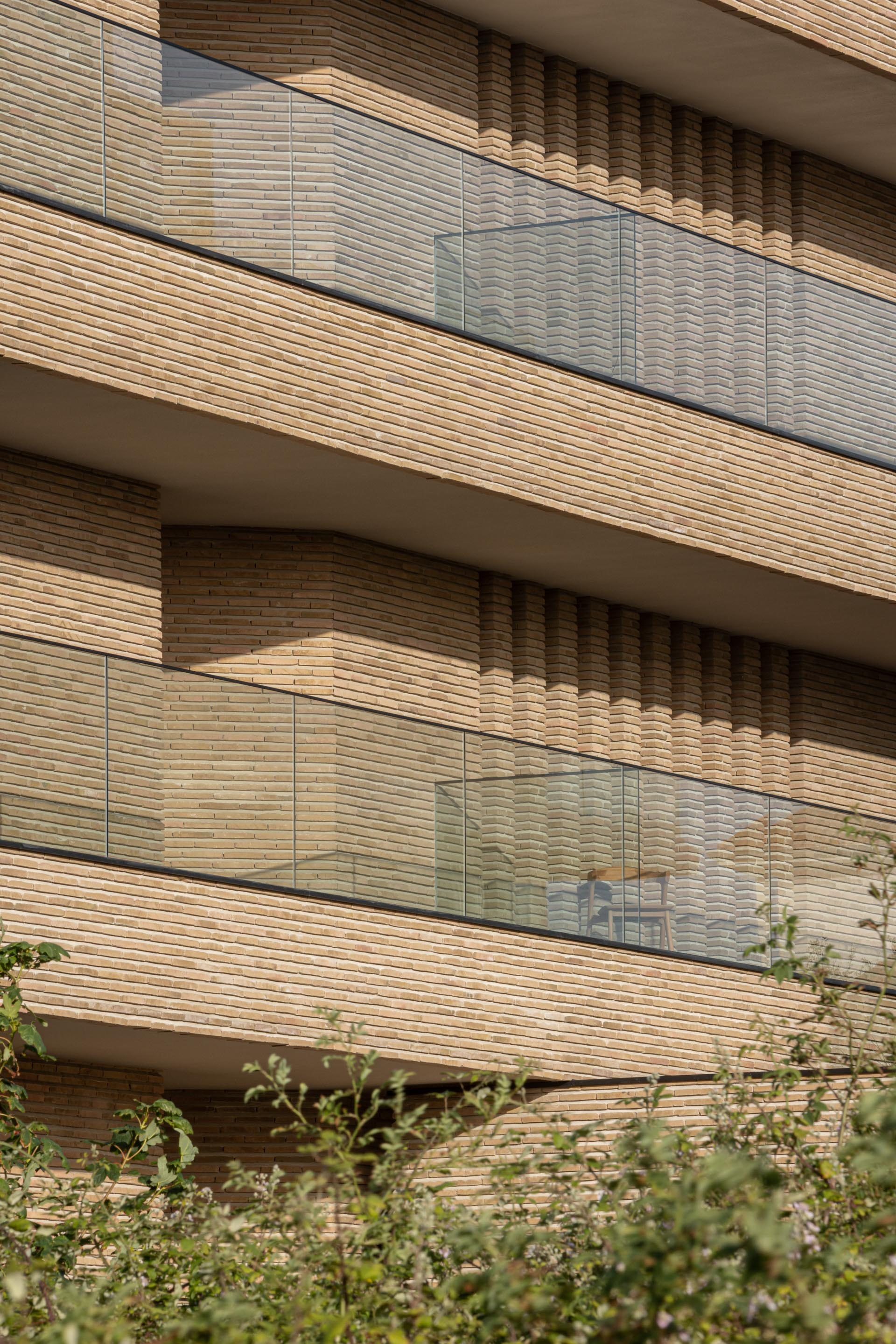

8670	Koksijde	Mooi Verblijflaan 4	Random bond	12 mm
1840	Londerzeel	Hageveld 16	Random bond	6 mm
1860	Meise	Bosstraat 11	Random bond	6 mm
4902 AB	Oosterhout	Ridderstraat 58		12 mm
3050	Oud Heverlee	Berrekesstraat 6	Random bond with strike-through joint	12 mm
9700	Oudenaarde	Ruttemburgstraat	Random bond	12 mm
1871 CB	Schoorl	Cornelis van Foreestlaan 3	Random bond	12 mm

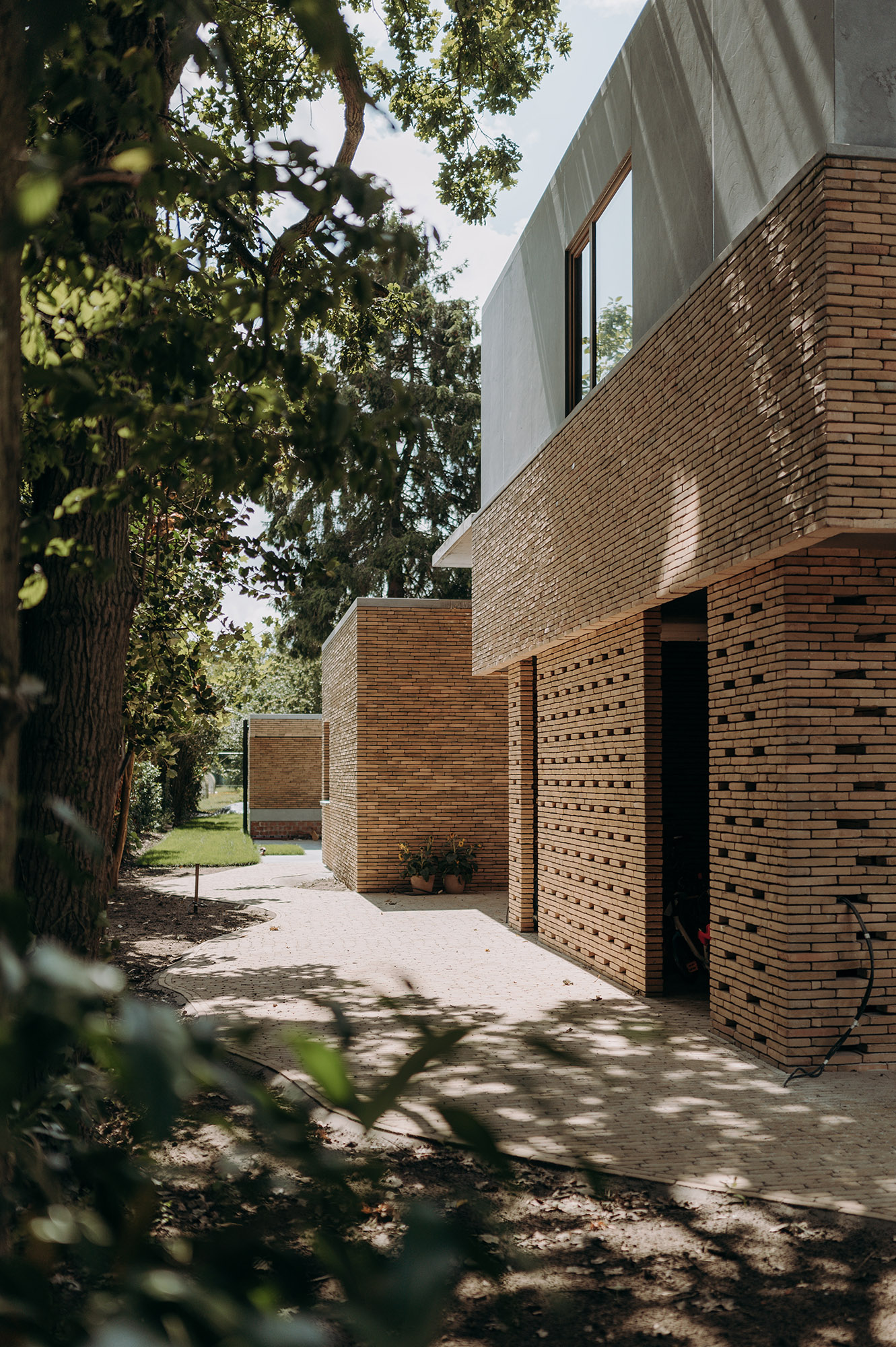

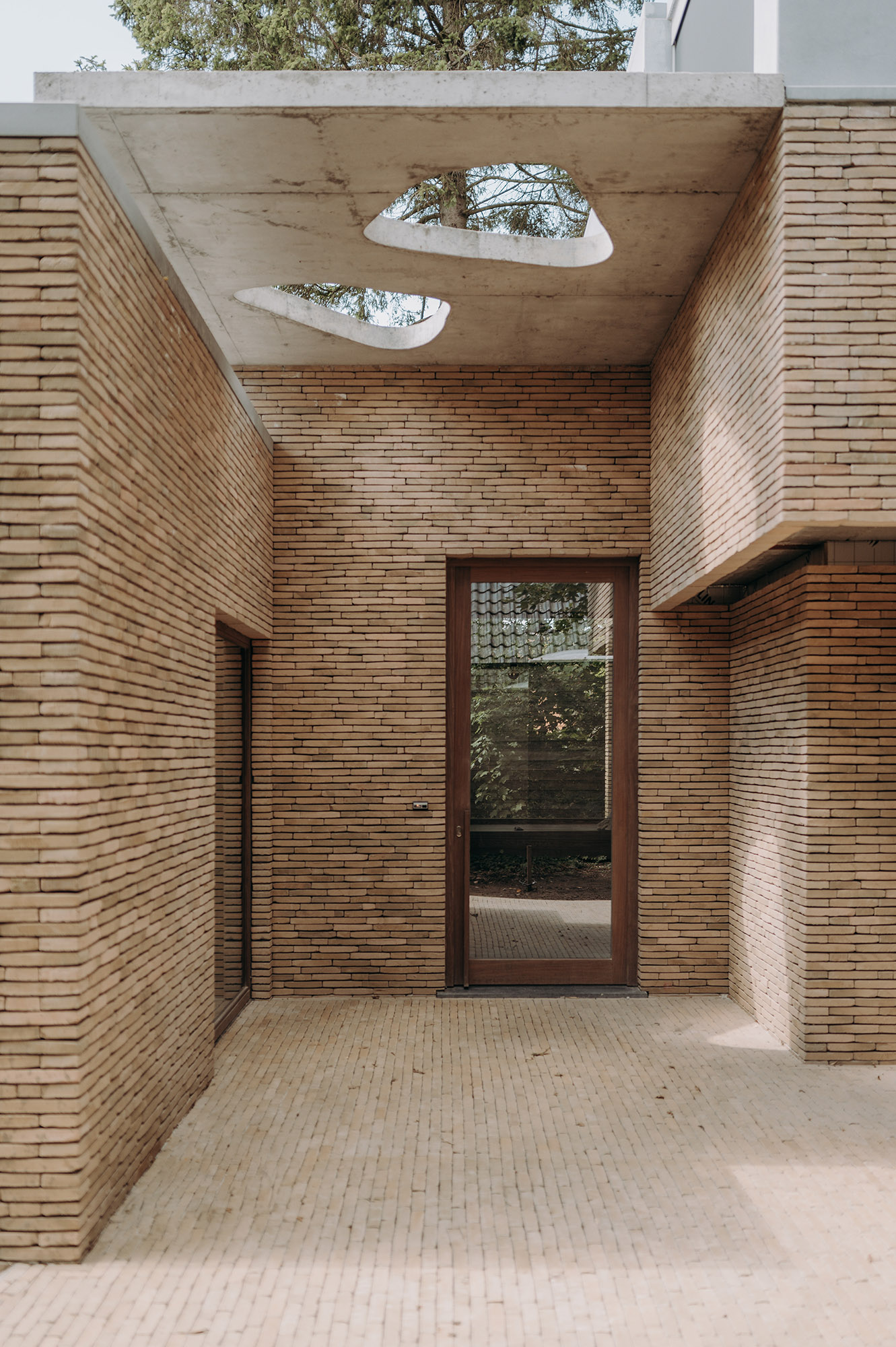

9051	Sint-Denijs-Westrem	Steenaardestraat 8	Random bond	6 mm
9100	Sint-Niklaas	Mgr. Stillemansstraat 45	Random bond with strike-through joint	10 mm
5406 DA	Uden	Gulden 2	Random bond with strike-through joint	12 mm
3511 JG	Utrecht	Achter Clarenburg 37		12 mm

You can scroll in this list

Print all

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.

As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.

The following precautions will help minimizing this:

Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
Take bricks diagonally across the pack.
Draw and use bricks from at least five different packs.
For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)

Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.

During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
Never lay bricks in driving rain conditions
