Facing bricksBrick K

Technical data sheets

Color description: The colour of the body is red, red-brown to red-bleu.
Manufacturing dimensions (L x W x H): ca. 230x75x55 mm (LxWxH)
Quantity / m² with a traditional joint: 62 (12 mm)
Number / m² with a thin joint: 70 (6 mm)
size 2: ca. 215x100x65 mm (LxWxH) - On demand > 2000 m²

Brick K

Bright red ecological Waal format

Brick K is a bright red (Basic red pure) moulded brick produced using the Wasserstrich method. It carries both our Hand-Made label and the ECO-7-size label. Our Hand-Made label guarantees a strong, natural nuance. The unsanded Brick K also carries the ECO-7-size label because it is 7 cm deep, unlike the classic Waal format which is 10 cm deep

Texture Generator

References

Brick slips

Technical data sheets

case studie Brick K

Red brick at one with the surrounding nature

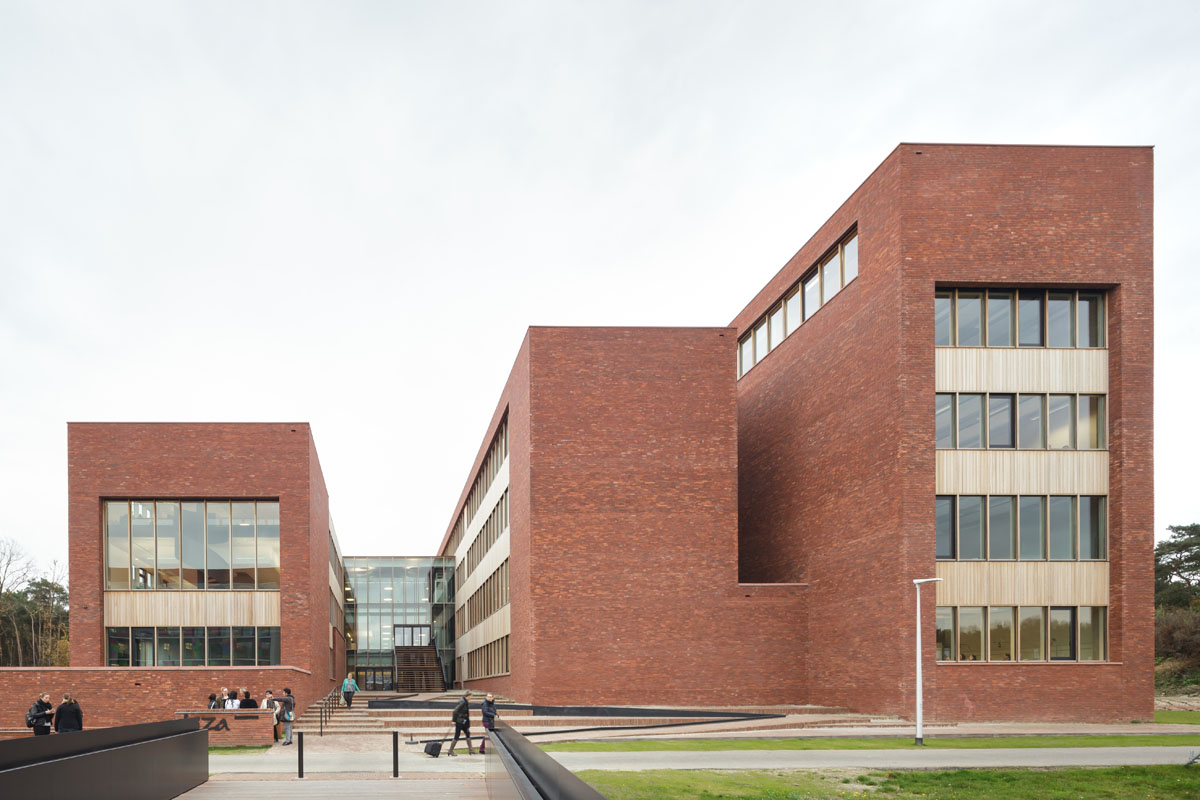

New education campus for the Department of Health Care

Today's health care – more than ever before – needs a strong link between the daily practice, education, research and society. With this in mind, the Institute of Higher Vocational Nursing Education in Genk, UC Leuven-Limburg institute of higher education and Oost-Limburg Hospital joined forces.

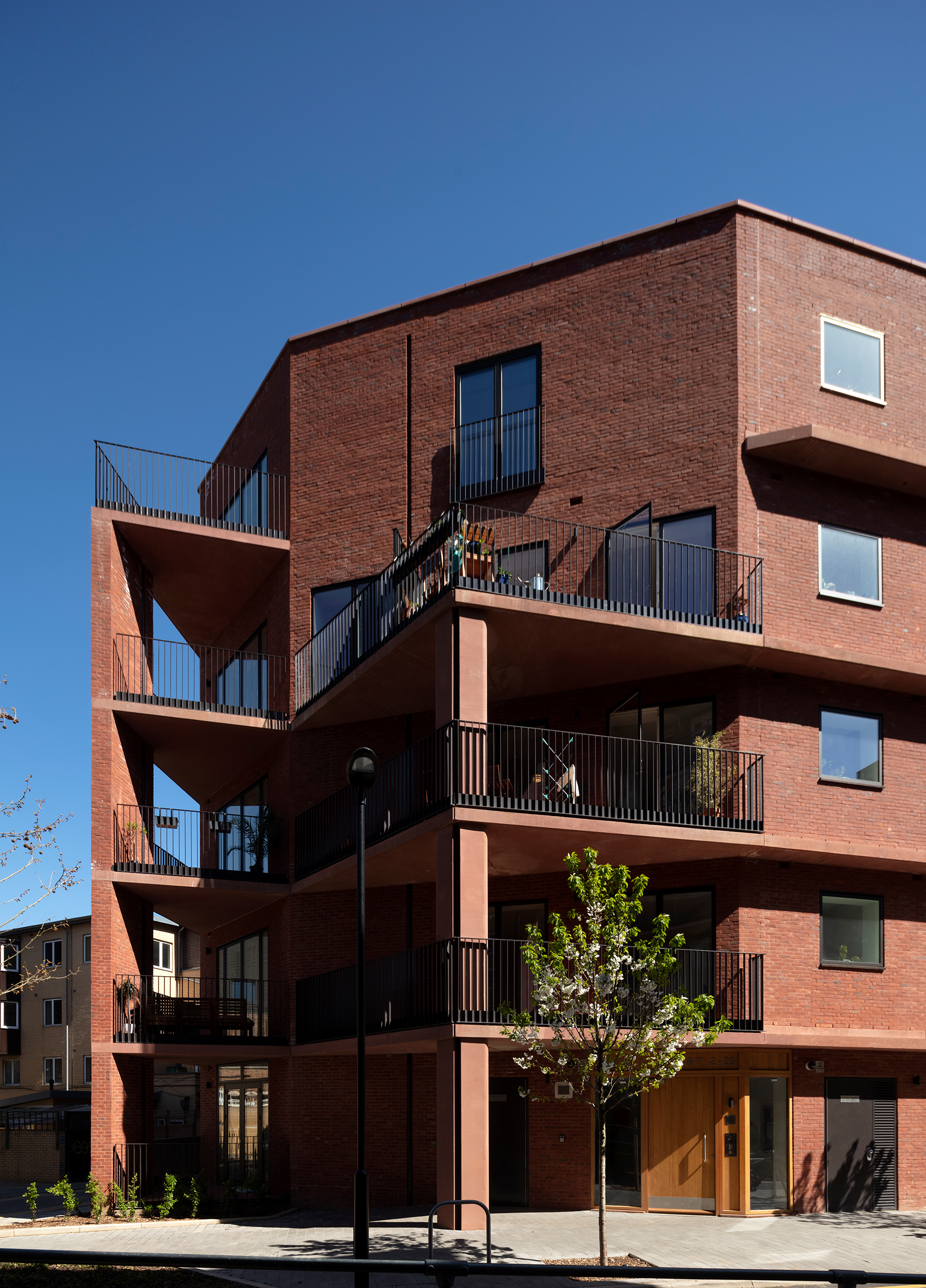

The grouping and massing of the new housing blocks negotiate between the contrasting urban conditions of the post-war estate and the Victorian street

Ecological ‘Brick K’ facing brick harmonises with neighbouring buildings but has its own distinct voice

Taylor & Chatto and Wilmott Courts form a pair of schemes, commissioned by Hackney Council, for new mixed tenure housing along with public realm and landscape improvements on infill sites on the edge of the postwar Frampton Park Estate.

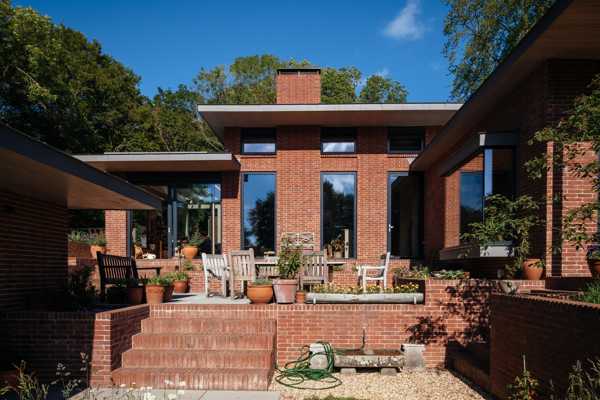

Eco-conscious living in the Gardener’s Cottage

A sustainable family home harmonizing with the traditional local village architecture and New Forest National Park district.

In the New Forest National Park district with intimate connections to the surrounding landscape, PAD studio designed a compact eco-conscious family home.

Show all case studies

References

Search by city

Print list

Reference list Brick K

You can scroll in this list

Postal code	City	Street	Bond	Joint	Window
9880	Aalter	Oostmolenstraat 54	Random bond	6 mm
3200	Aarschot	Gijmelsesteenweg 52	Random bond	6 mm
3570	Alken	Alkerstraat 67	Random bond	6 mm	White
8690	Alveringem	Lovoetweg 5	Random bond	8 mm
1087 VA	Amsterdam	Muiderlaan 315	Random bond	12 mm
1097 AE	Amsterdam	Ringdijk 44	Random bond	12 mm
2000	Antwerpen	Hoek Londenstr. en Kattendijkdok Oostkaai		10 mm
8850	Ardooie	Oude Lichterveldsestraat 69	Random bond	6 mm
1730	Asse	Krokegemseweg	Random bond	6 mm
1730	Asse	Krokegemseweg	Random bond	6 mm

Postal code	City	Street	Bond	Joint	Window	Remarks
9880	Aalter	Oostmolenstraat 54	Random bond	6 mm
3200	Aarschot	Gijmelsesteenweg 52	Random bond	6 mm
3570	Alken	Alkerstraat 67	Random bond	6 mm	White
8690	Alveringem	Lovoetweg 5	Random bond	8 mm
1087 VA	Amsterdam	Muiderlaan 315	Random bond	12 mm
1097 AE	Amsterdam	Ringdijk 44	Random bond	12 mm
2000	Antwerpen	Hoek Londenstr. en Kattendijkdok Oostkaai		10 mm
8850	Ardooie	Oude Lichterveldsestraat 69	Random bond	6 mm
1730	Asse	Krokegemseweg	Random bond	6 mm
1730	Asse	Krokegemseweg	Random bond	6 mm
8580	Avelgem	Toekomststraat 56	Random bond	12 mm	White
9310	Baardegem	Margrietstraat 92		12 mm
9840	Balegem	Boerestraat 24A	Random bond	6 mm
9840	Balegem	Evelandweg 11	Random bond	10 mm
9690	Berchem	Parklaan	Random bond	6 mm
2560	Bevel	Bevel Dorp 143b	Random bond	6 mm
9120	Beveren	Trosbessenlaan 21	Random bond	6 mm
9120	Beveren	Viergemeet 84	Random bond	6 mm
2880	Bornem	Scheldestraat 17	Random bond	6 mm
5004	Bouge	Chaussée de Louvain 266	Random bond	6 mm
4816 BG	Breda	Stationslaan 1292	Random bond	12 mm
7061	Casteau	Chemin du Foyau 83	Random bond	6 mm
8890	Dadizele	Menenstraat 86	Random bond	6 mm
9070	Destelbergen	Sint-Pietershofstraat 68-70	Random bond	12 mm
8600	Diksmuide	Eikhofstraat 6	Random bond	6 mm
1700	Dilbeek	Emile De Blutslaan	Random bond	6 mm
7500	Doornik	Rue du Crampon 93	Random bond	6 mm	White
7972	Ellignies-Sainte-Anne	Rue Neuve 46a	Random bond	6 mm
9140	Elversele	Dorpstraat 11-17	Random bond	12 mm
5469 HK	Erp	Achterbolst	Random bond with strike-through joint	12 mm
6560	Erquelinnes	Rue Aubelaine	Random bond	6 mm
7880	Flobecq	Panlevé 10	Random bond	6 mm
3886 KC	Garderen	Koningsweg	Random bond	12 mm
3600	Genk	Neerzijstraat 15	Random bond	6 mm
3600	Genk	Neerzijstraat 15	Random bond	6 mm
3600	Genk	Schiepse Bos 5		6 mm
9000	Gent	Brusselsepoortstraat 73-79	Random bond	6 mm
9000	Gent	Moutstraat 50	Random bond	6 mm	White
9000	Gent	Voskenslaan 271	Random bond with strike-through joint	12 mm
9500	Geraardsbergen	Spoorwegstraat 14	Random bond	12 mm
4650	Grand Rechain	Av. Des Platanes 119	Random bond	6 mm
8560	Gullegem	Hondschotestraat 32	Random bond	12 mm
8560	Gullegem	Kwadestraat 114	Random bond	6 mm
E9 7NU	Hackney	47 Well Street	Random bond	12 mm		Frampton Arms
E9 7NN	Hackney	Woolridge Road	Random bond	12 mm		Lyttleton House
3500	Hasselt	Casterstraat 74	Random bond	6 mm
3500	Hasselt	Jef Koningslaan 52	Random bond	6 mm
3020	Herent	Tweebruggenstraat 57 B1 en B2	Random bond	6 mm
6941	Heyd- Durbuy	A Pahis 41	Random bond	6 mm
9506	Idegem	Ninoofsestraat 46A	Random bond	6 mm
3510	Kermt	Diestersteenweg 86	Random bond	6 mm
9690	Kluisbergen	Molenstraat 113	Random bond	6 mm
8500	Kortrijk	Morinnestraat	Random bond
8500	Kortrijk	Oudenaardsesteenweg 344	Random bond	6 mm
8930	Lauwe	Dronkaardstraat 354	Random bond	6 mm
3000	Leuven	Kapucijnenvoer 47	Random bond	6 mm
9920	Lievegem	Sint-Jansstraat 13	Random bond	12 mm

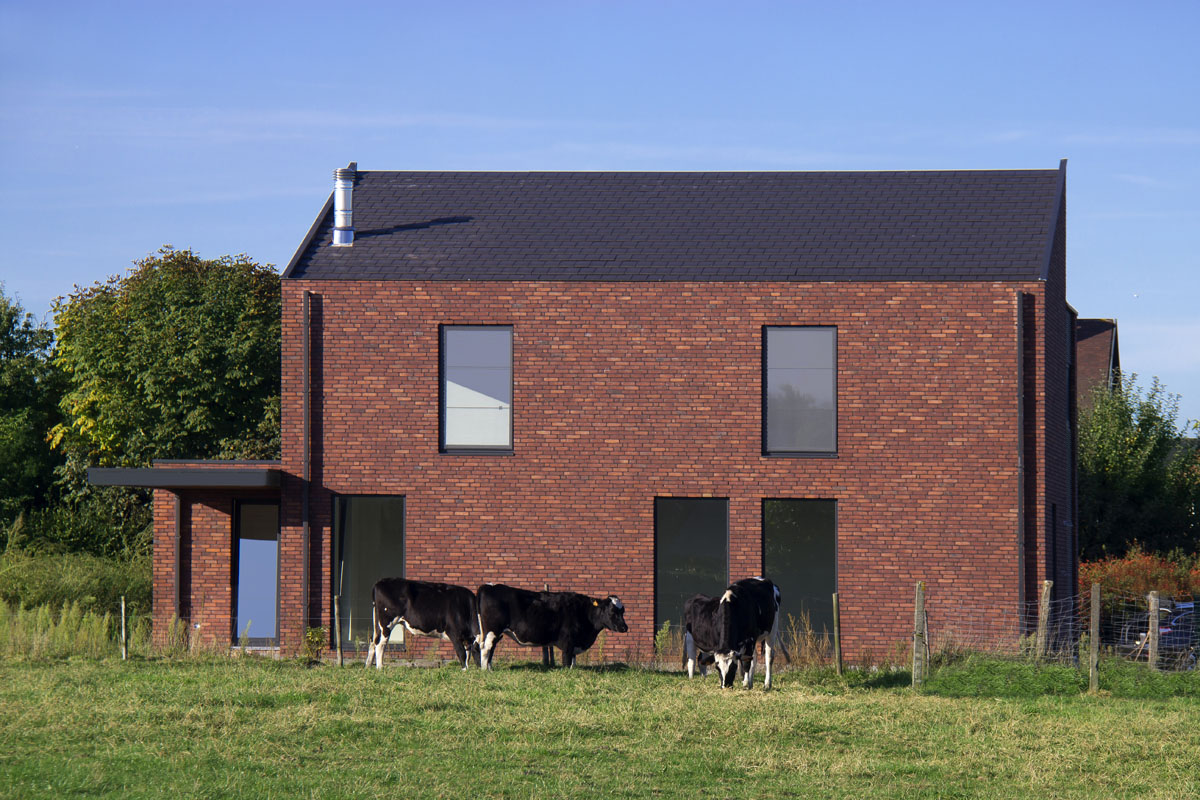

9080	Lochristi	Fazantenstraat 27	Random bond	6 mm
9010	Lochristi	Rivierstraat 70	Random bond	12 mm

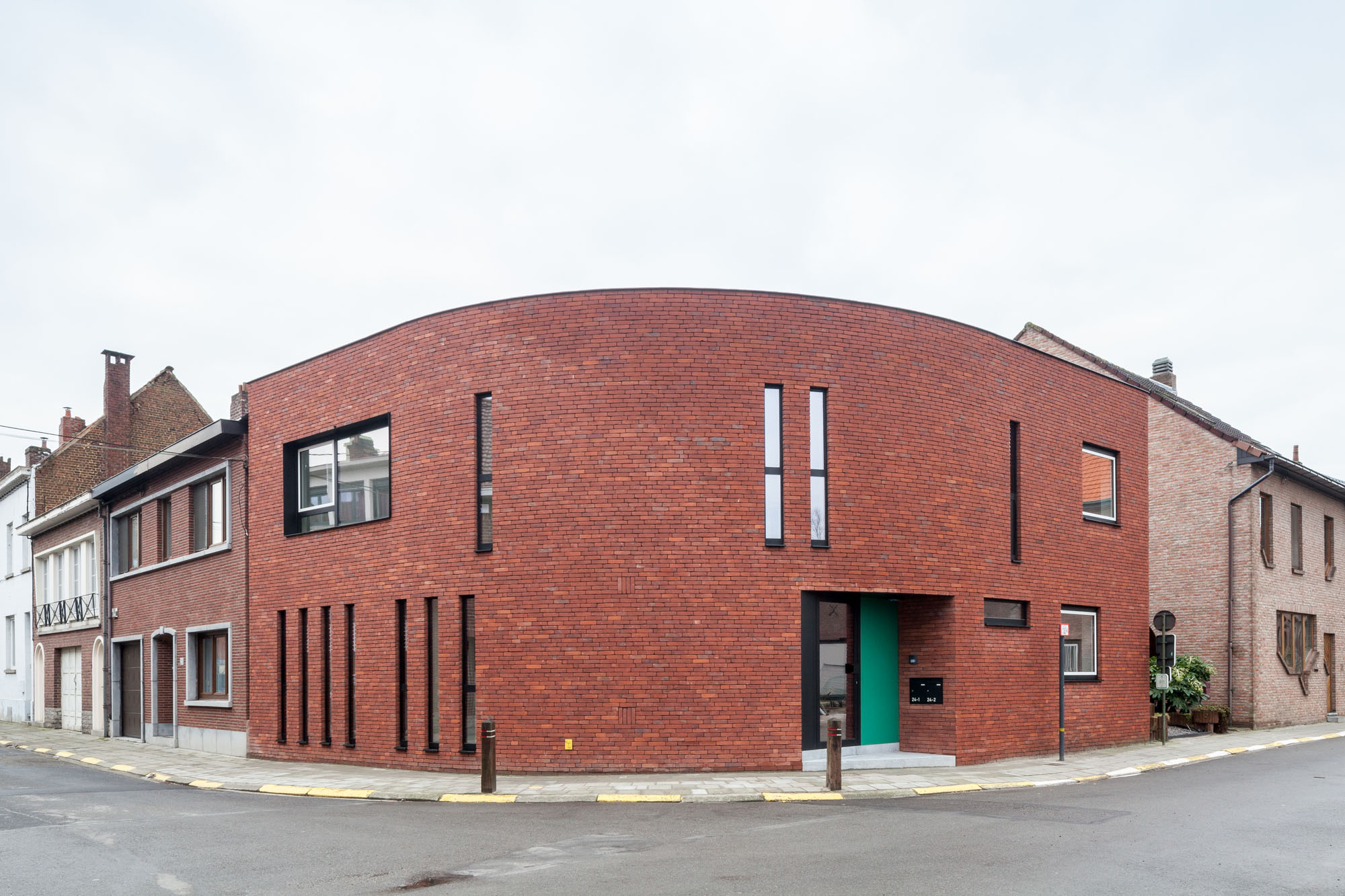

1651	Lot	Hoek Emiel Debusscherstraat 24	Random bond	6 mm
1840	Malderen	Handelsstraat 126	Random bond	6 mm
1840	Malderen	Zwaluwstraat 89	Random bond	6 mm
9030	Mariakerke	Ahornlaan 5A	Random bond	6 mm
9820	Merelbeke	Gaversesteenweg 411	Random bond	6 mm
9180	Moerbeke	Ter Westvaart 26	Random bond	6 mm
7911	Montroeul-au-Bois	Rue Barberie 3 a-b	Random bond	12 mm
7140	Morlanwelz	Avenue Winston Churchill 9
2845	Niel	Galileilaan	Random bond	6 mm
9400	Ninove	Kerkstraat 178	Random bond	6 mm
8020	Oostkamp	Kortrijksestraat 133	Random bond	6 mm
3050	Oud Heverlee	Ophemstraat 140		6 mm
9200	Oudegem	Oudegemsebaan-Varenbergstraat	Random bond	6 mm
9700	Oudenaarde	Kanunikkenstraat 117	Random bond	6 mm
8980	Passendale	Passendaleplaats	Random bond	6 mm	White
9630	Paulatem	Paulatemstraat 47	Random bond	6 mm

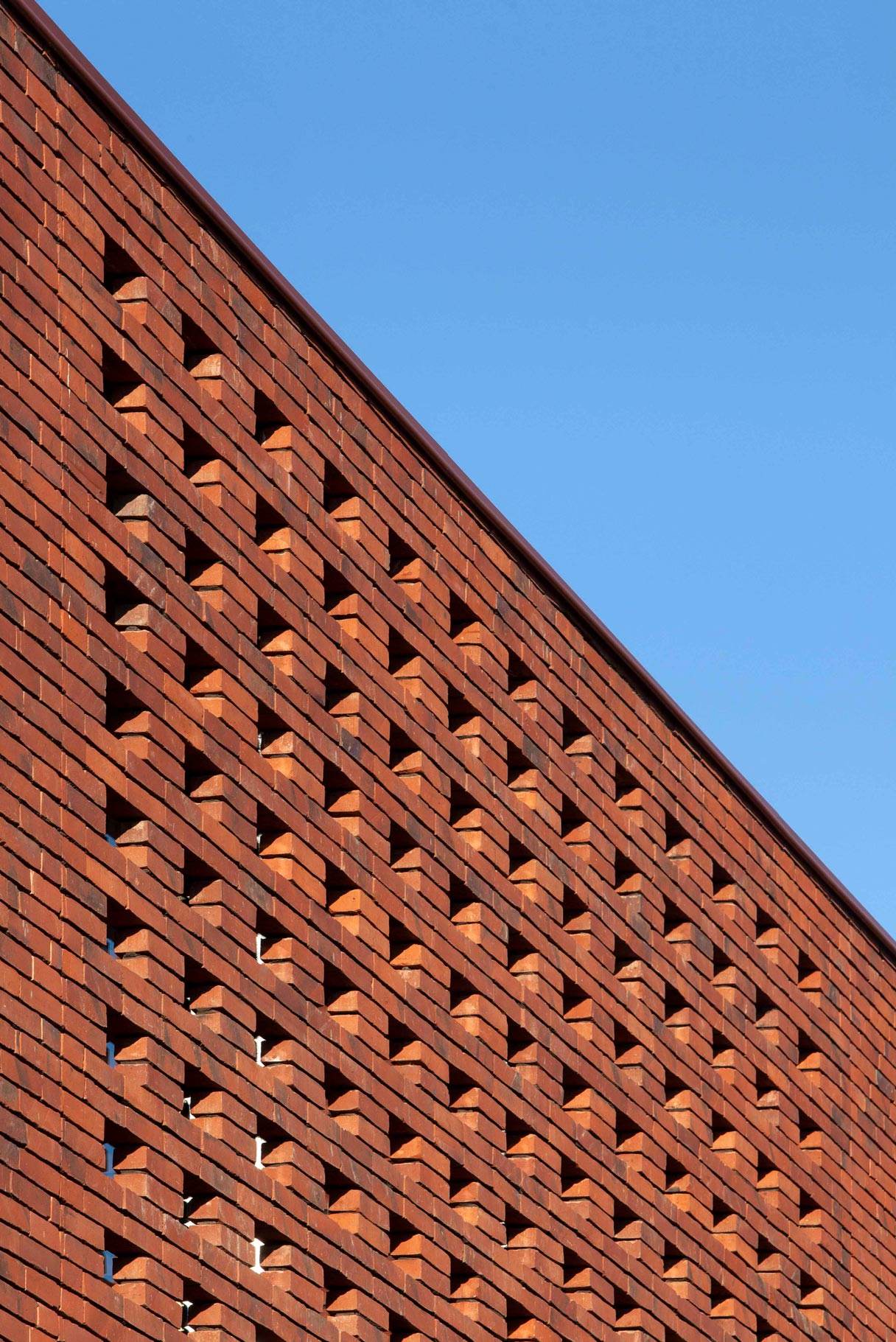

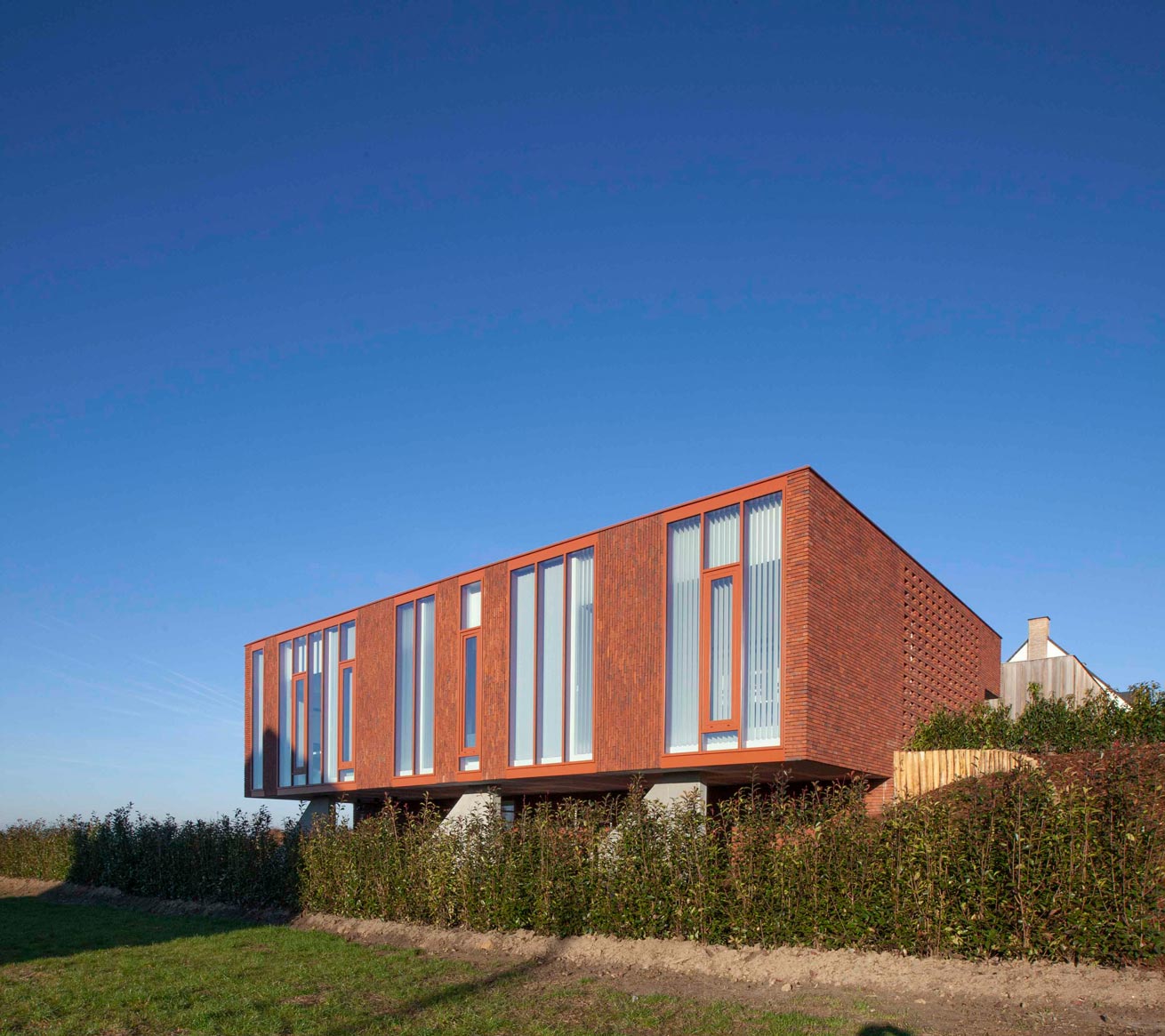

3770	Riemst	Visésteenweg 76	Random bond	6 mm
8587	Roeselare	azalealaan 1-2-3-4	Random bond	6 mm
8800	Roeselare	Beekstraat 20	Random bond	6 mm
9600	Ronse	Oude Vesten rechts van 16	Random bond	10 mm
9600	Ronse	Saint-Sauveurstraat 63	Random bond	6 mm
9600	Ronse	St.- Sauveurstraat 63	Random bond	6 mm
9688	Schorisse	Hofveldstraat 87	Random bond	6 mm
8710	Sint-Baafs-Vijve	Loverhoek 27	Random bond	6 mm
3803	Sint-Truiden	Rozenstraat 10	Random bond	6 mm
8587	Spiere-Helkijn	Elleboogstraat 1	Random bond	6 mm
8840	Staden	Ieperstraat 15	Random bond	6 mm
9140	Steendorp	Warandestraat 133	Random bond	6 mm
8820	Torhout	Lichterveldstraat-Tinnenburgstraat	Random bond	6 mm	White

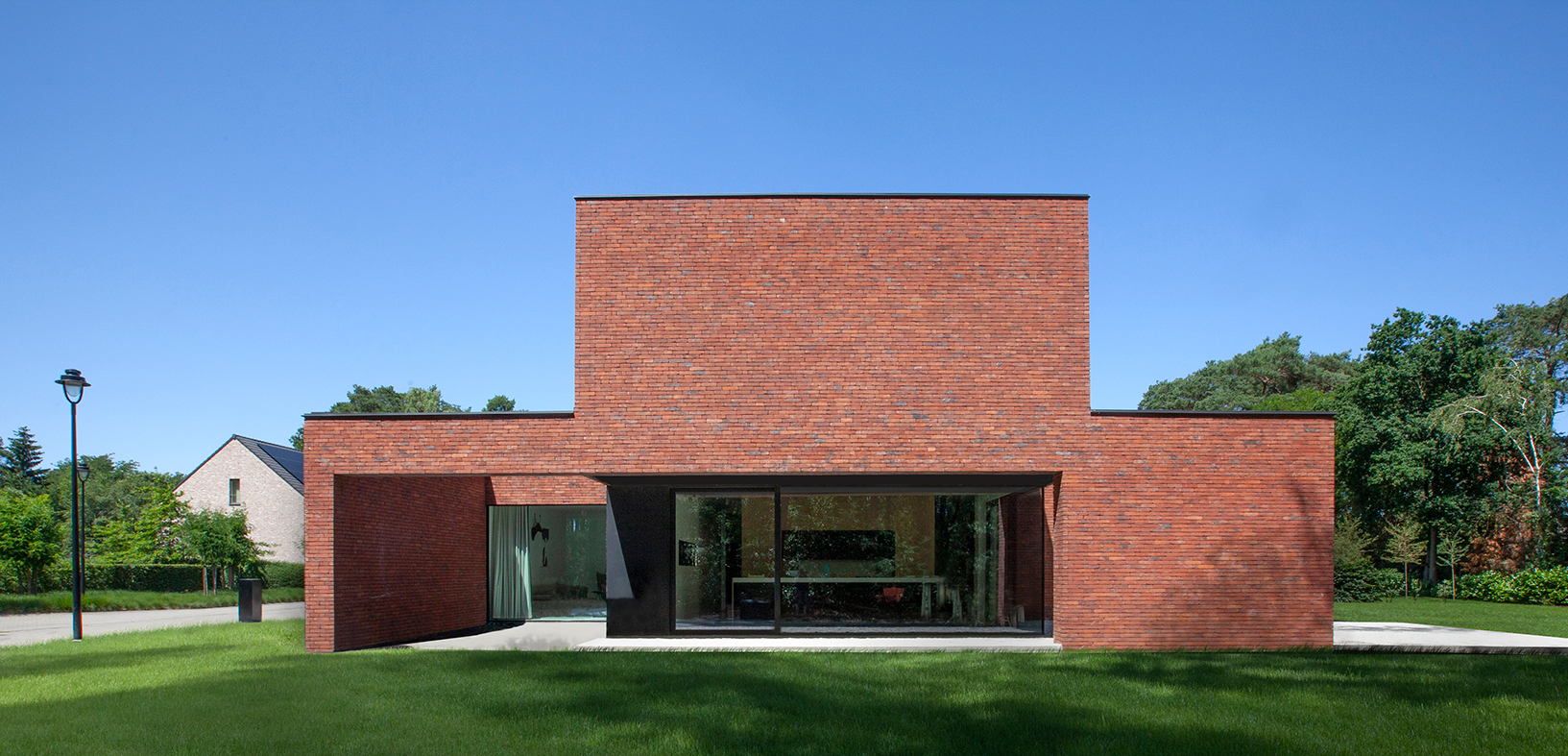

3120	Tremelo	Gezonde Luchtstraat 9	Random bond	6 mm
Postcode Straat Numm	Utrecht	Biltse Rading / Veemarktterrein	Random bond with strike-through joint	12 mm
3541 CM	Utrecht	inrit via Catesiusweg/Station Zuilen	Random bond	8 mm
3020	Veltem-Beisem	Groenstraat 79A	Random bond	6 mm
5926 PJ	Venlo	Molenkampweg 47	Random bond	12 mm
7812	Villers-Saint-Amand	Rue Robert Delange	Random bond	6 mm
4600	Visé	Rue Marcelle Martin 31	Random bond	6 mm
2350	Vosselaar	Kruisstraat 50	Random bond	6 mm
9185	Wachtebeke	Dorp 88-90-92	Random bond	6 mm
3401	Walshoutem	Bertreestraat	Random bond	6 mm
8710	Wielsbeke	Stationsstraat 19	Random bond	6 mm
7890	Wodecq	Vieux Moulin 29	Random bond	6 mm
2990	Wuustwezel	Bredabaan 520	Random bond	6 mm
9080	Zaffelare	Persijzerstraat 45	Random bond	6 mm
9240	Zele	Dr. Victor Van Cauterenstraat		12 mm
9870	Zulte	Processiestraat rechts van 13	Random bond	6 mm
9630	Zwalm	Veldstraat 26	Random bond	6 mm
8550	Zwevegem	Luipaardstraat 36	Random bond	6 mm
9052	Zwijnaarde	Mattestede 16	Random bond	6 mm

You can scroll in this list

Print all

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.

As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.

The following precautions will help minimizing this:

Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
Take bricks diagonally across the pack.
Draw and use bricks from at least five different packs.
For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)

Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.

During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
Never lay bricks in driving rain conditions
