Facing bricksBrick W
Technical data sheets
- Color description
- The colour of the body is light grey with beige accents..
- Manufacturing dimensions (L x W x H)
- ca. 227x74x55 mm (LxWxH)
- Quantity / m² with a traditional joint
- 63 (12 mm)
- Number / m² with a thin joint
- 71 (6 mm)
- size 2
- ca. 215x100x65 mm (LxWxH) - On demand > 2000 m²
Brick W

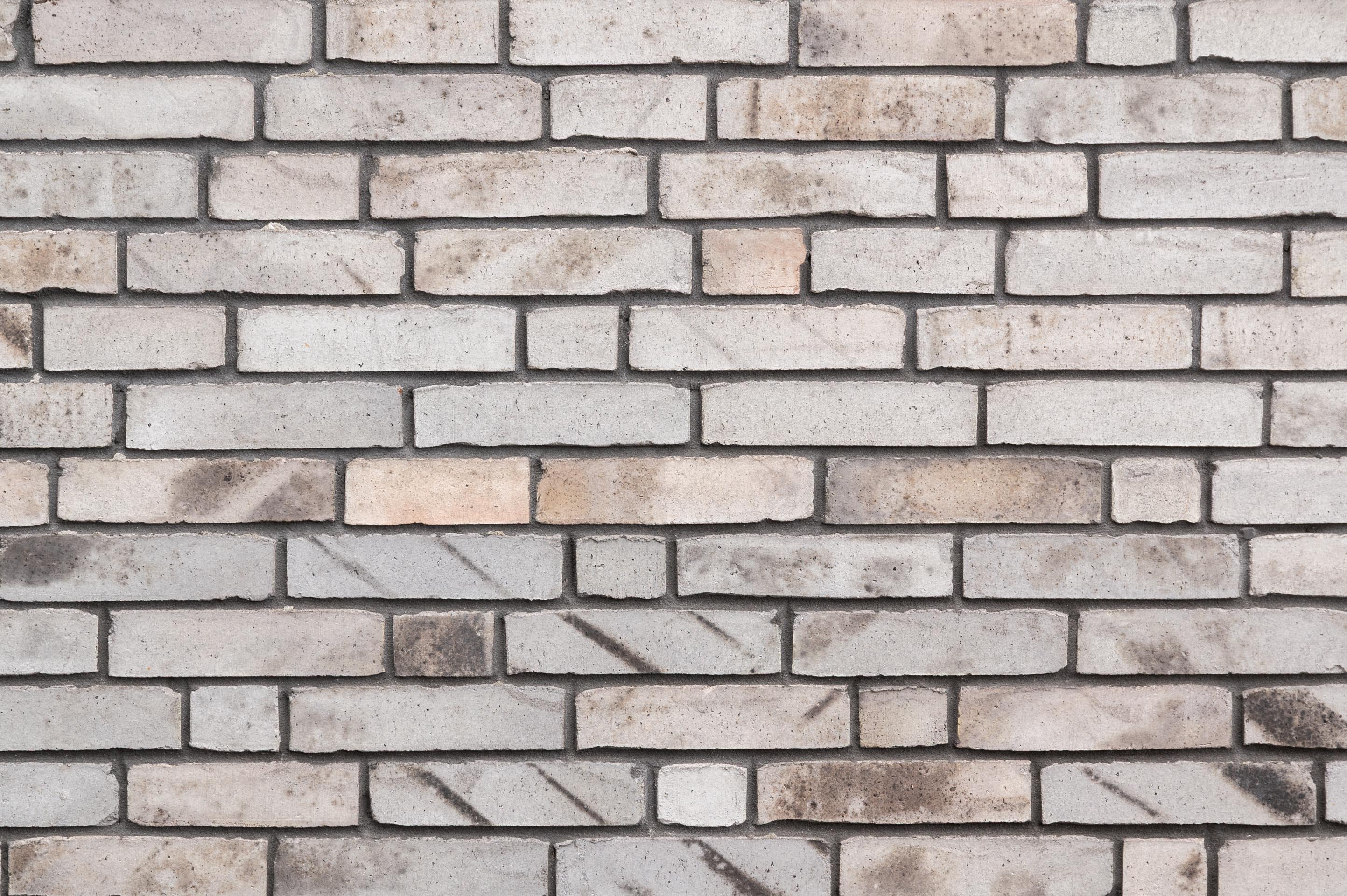

Light grey ecological Waal format
Brick W is a light grey (Basic cream greyish) moulded brick produced using the Wasserstrich method. It carries both our Hand-Made label and the ECO-7-size-label. Our Hand-Made label guarantees a strong, natural nuance. The unsanded Brick W also carries the ECO-7-size-label because it is 7 cm deep, unlike the classic Waal format which is 10 cm deep.
case studie Brick W
Simplicity and elegance thanks to the combination of wood and brick

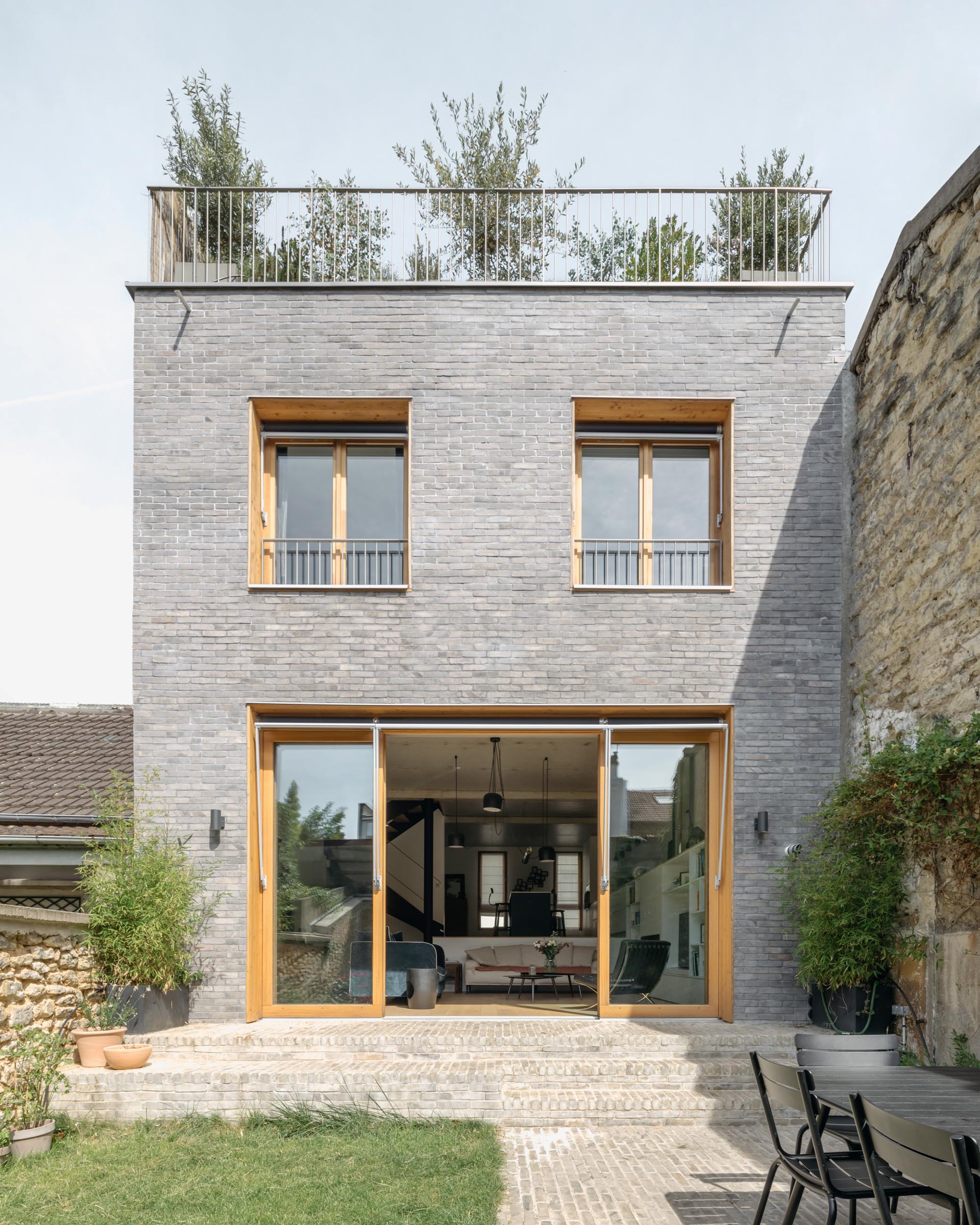

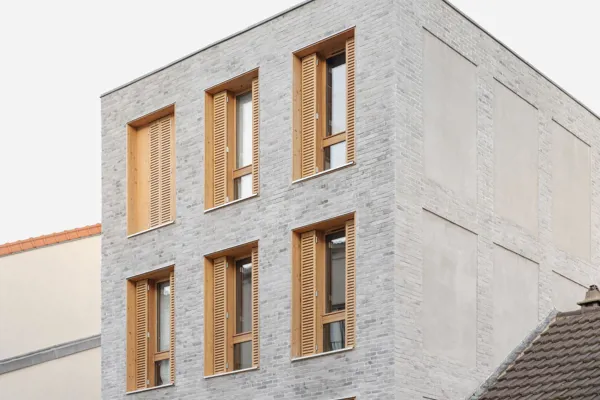

A contemporary design for a family home in Paris with the NATURE7 Brick W
Maison G, built by HARDEL LE BIHAN ARCHITECTES on the outskirts of Paris, is an example of harmonious integration between tradition and modernity. This private residential project is distinguished by its elegant sobriety and its controlled use of Vande Moortel’s NATURE7 Brick W, which gives the building a strong identity while adapting to the architectural landscape of the neighborhood.
Continue reading

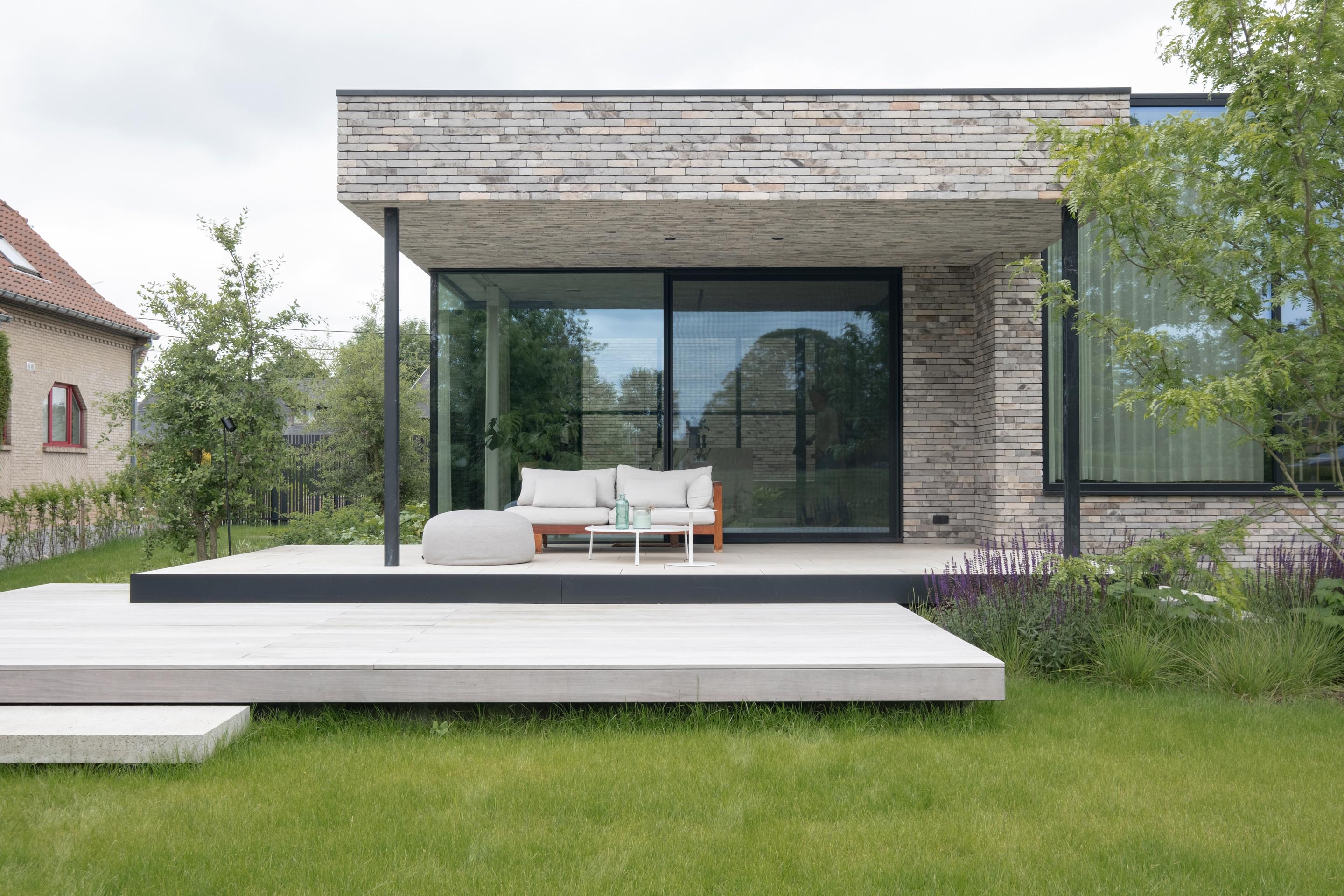

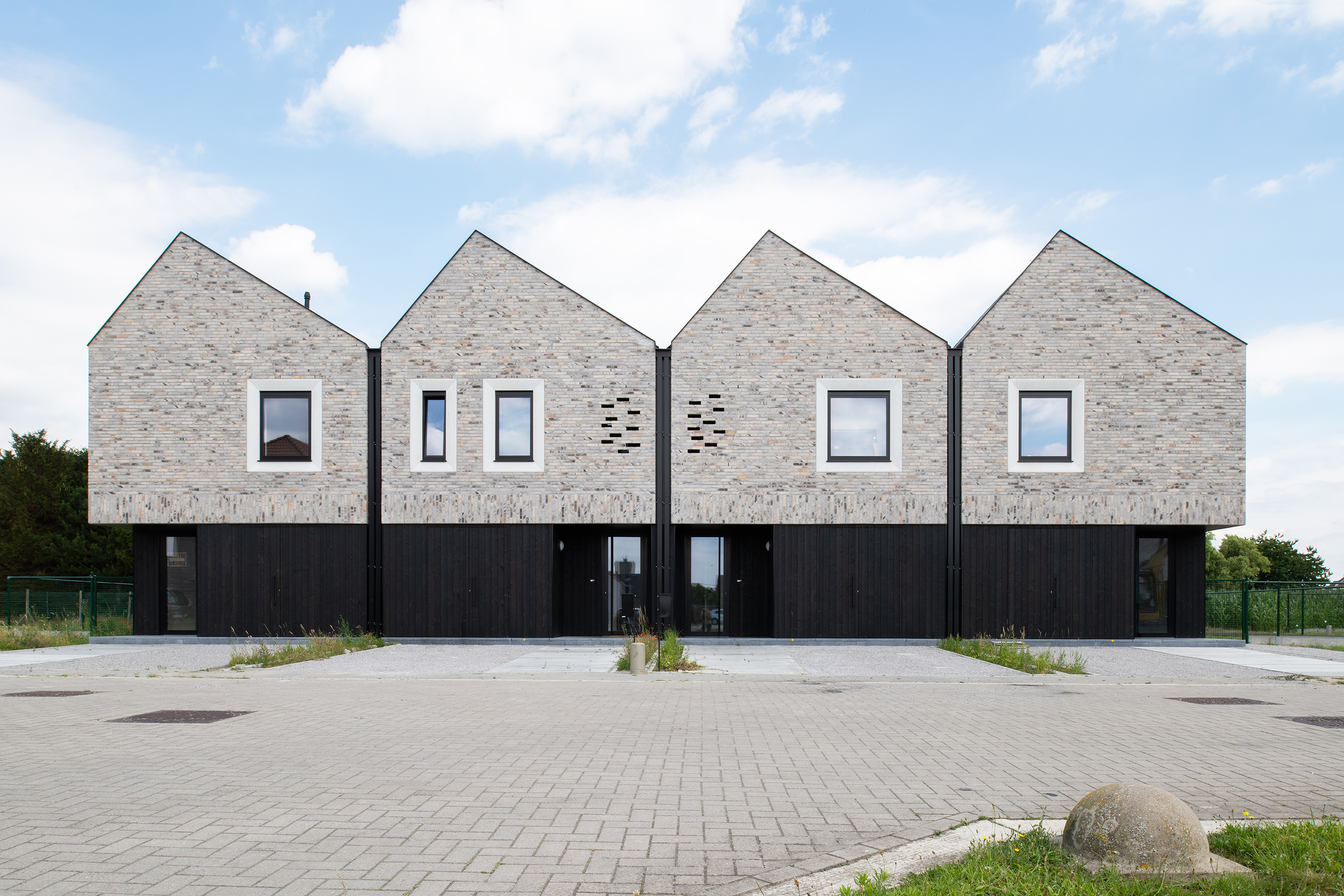

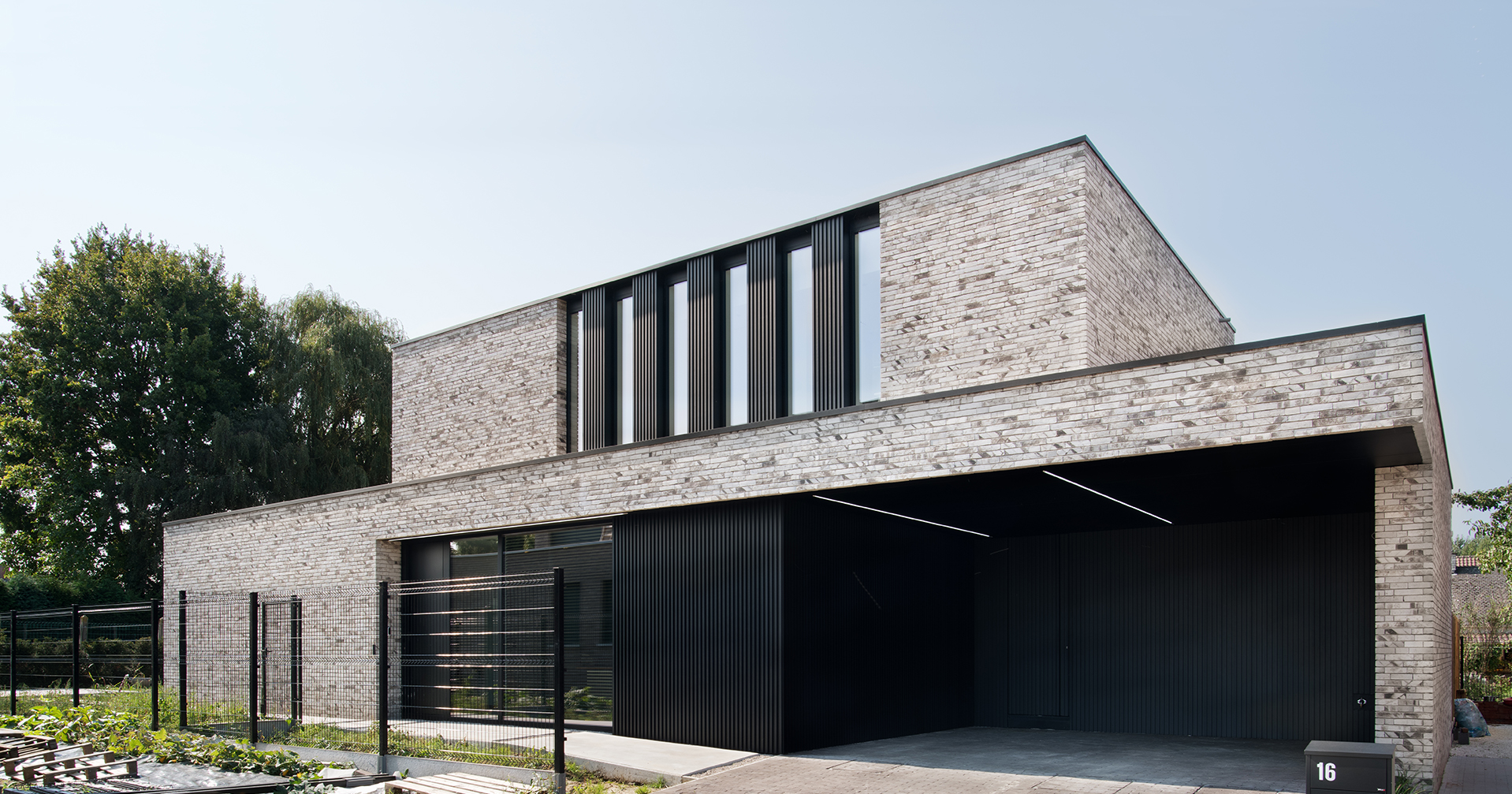

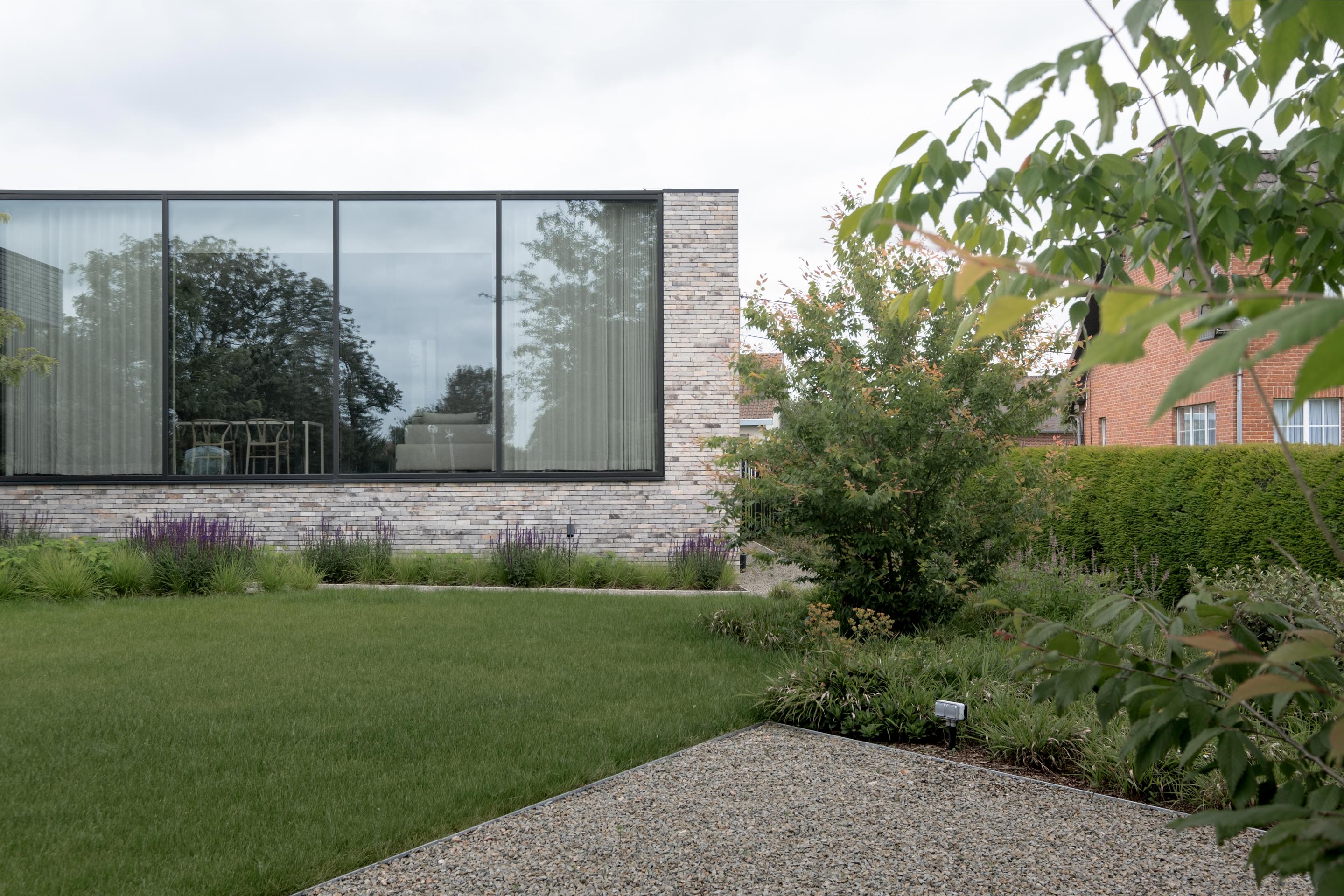

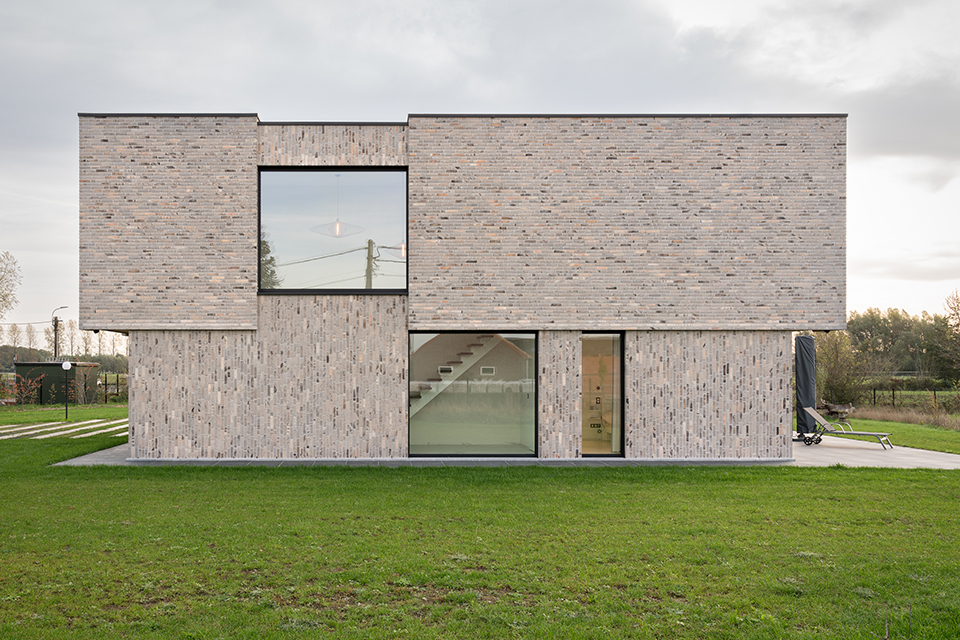

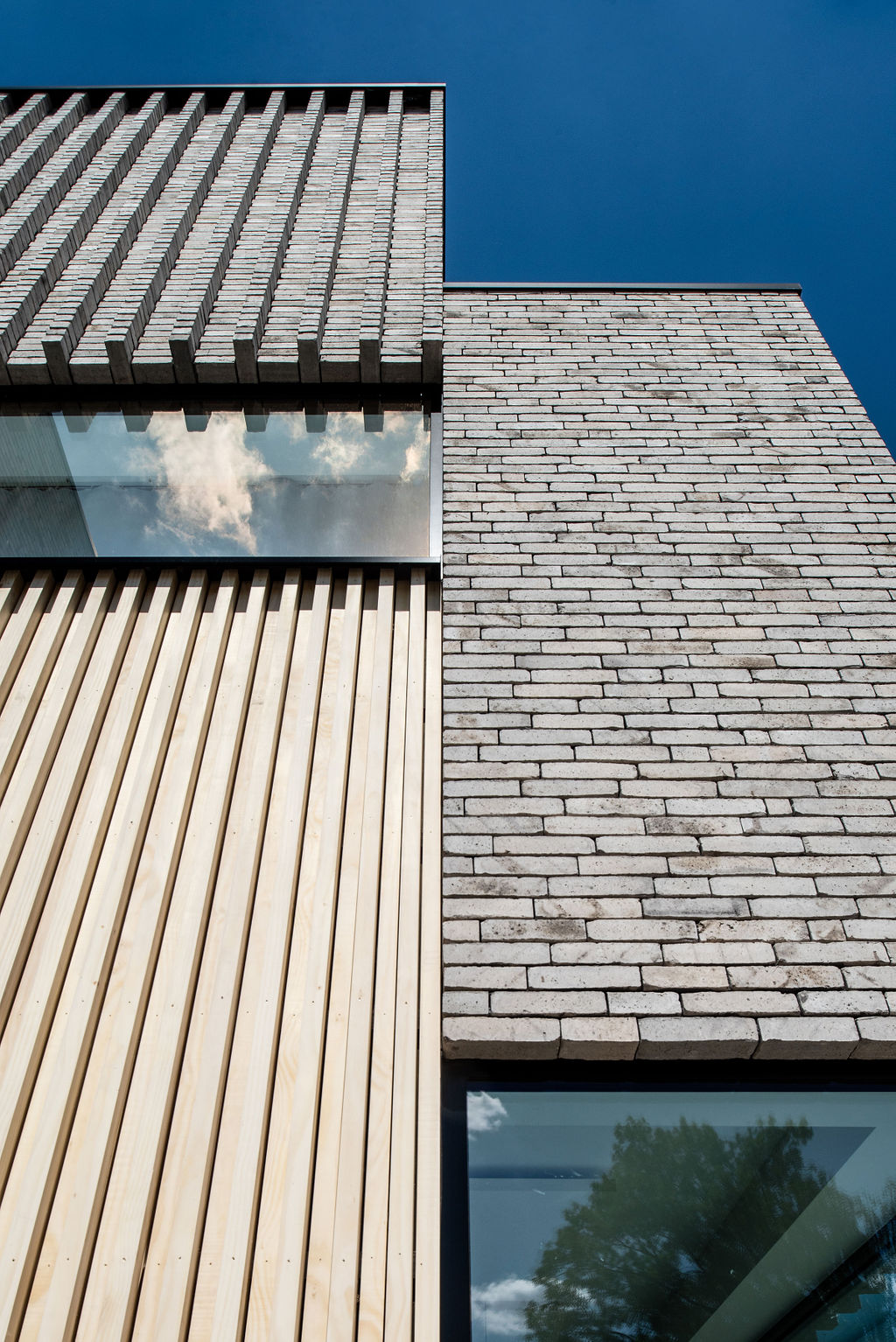

References
How to Install ?
Preparation of the construction site
Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.
As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.
The following precautions will help minimizing this:
- Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
- Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
- Take bricks diagonally across the pack.
- Draw and use bricks from at least five different packs.
- For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
- As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
- Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
- In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
- Do not lay bricks in precipitation in order to prevent mortar from running on the wall.
Avoid Efflorescence
Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)
Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.
- During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
- Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
- Never lay bricks in driving rain conditions
